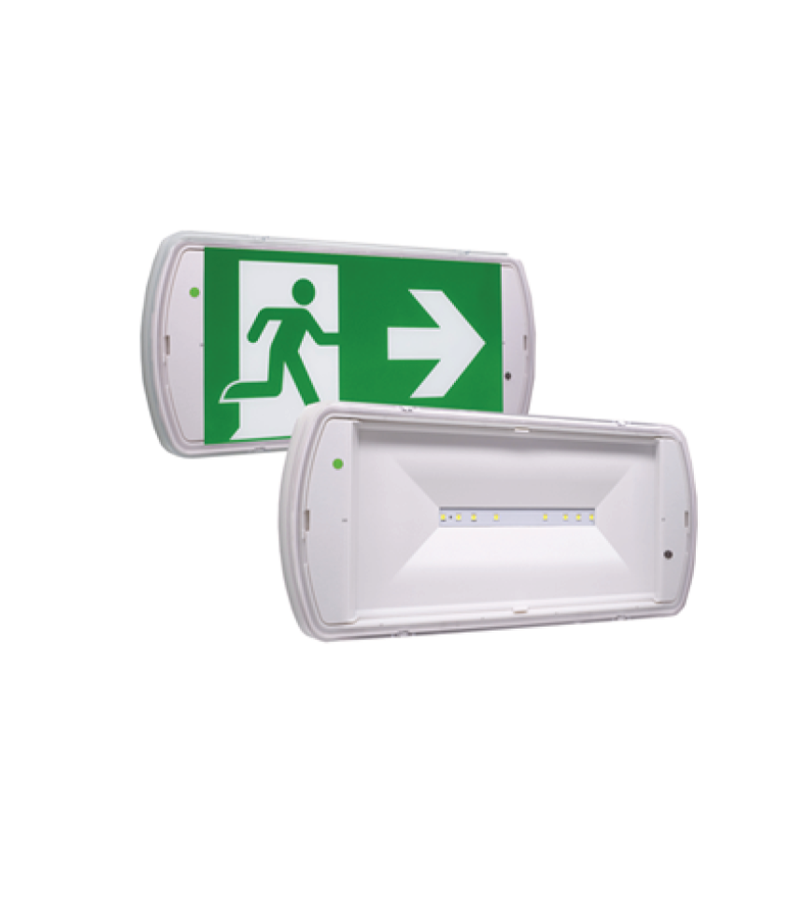

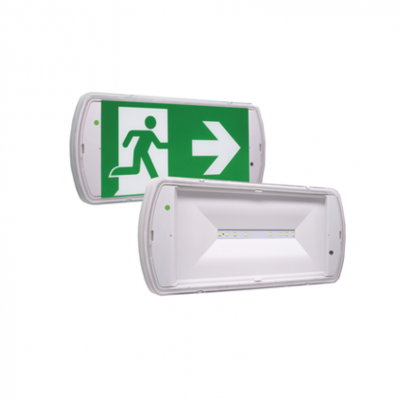

Self-contained emergency bulkhead, available in two size options. Self-adhesive legends and mounting accessories available.
Key features:
- IP65
- 3 Hour Duration
- Manual Test
- Maintained and Non maintained operation
- 20m & 30m viewing distances
- Self-adhesive ISO format legend kit available
Contact the team to discuss the best solution for you.
TECHNICAL
Specifications
DIMENSIONS & PHOTOMETRY

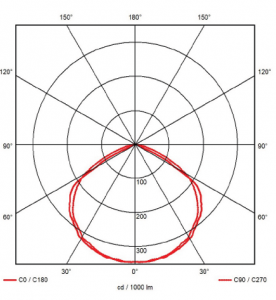

ZEB-20 Small Version

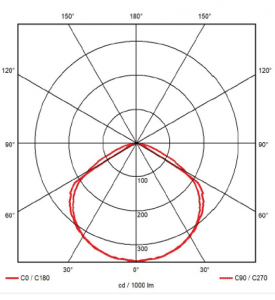

ZEB-30 Large Version
| Width (mm) | Depth (mm) | Length (mm) | |
| ZEB-20 | 119 | 49 | 270 |
| ZEB-30 | 170 | 69 | 371 |
| ZEB-20 | ZEB-30 | |
| Width (mm) | 119 | 170 |
| Depth (mm) | 49 | 69 |
| Length (mm) | 270 | 371 |
| CODE | Description | Light Output (Lm) | System Power(W) | Efficacy (Lm/cW) |
| ZEB203H | IP65 emergency bulkhead, small | 150 | 5.5 | 27.3 |
| ZEB303H | IP65 emergency bulkhead, large | 150 | 5.5 | 27.3 |
| For DALI/Self test please suffix DA, e.g ZEB203H becomes ZEB203HDA | ||||
| Code | ZEB203H | ZEB303H |
|---|---|---|
| Description | IP65 emergency bulkhead, small | IP65 emergency bulkhead, large |
| Light Output (Lm) | 150 | 150 |
| System Power(W) | 5.5 | 5.5 |
| Efficacy (Lm/cW) | 27.3 | 27.3 |
Accessories
| Part No | Description |
|---|---|
| ZEB20/LEGKIT | ZEB-20 self adhesive ISO format legend kit, 20m viewing distance |
| ZEB30/LEGKIT | ZEB-30 self adhesive ISO format legend kit, 30m viewing distance |
| ZEB20/BLD | ZEB-20 double sided diffuser, 20m viewing distance |
| ZEB30/BLD | ZEB-20 double sided diffuser, 30m viewing distance |
| ZEB20/RB | ZEB-20 recessing base |
| ZEB30/RB | ZEB-30 recessing base |
| ZEB20/WG | ZEB-20 wire guard |
| ZEB30/WG | ZEB-30 wire guard |
| Part No | Description |
|---|---|
| ZEB20/LEGKIT | ZEB-20 self adhesive ISO format legend kit, 20m viewing distance |
| ZEB30/LEGKIT | ZEB-30 self adhesive ISO format legend kit, 30m viewing distance |
| ZEB20/BLD | ZEB-20 double sided diffuser, 20m viewing distance |
| ZEB30/BLD | ZEB-20 double sided diffuser, 30m viewing distance |
| ZEB20/RB | ZEB-20 recessing base |
| ZEB30/RB | ZEB-30 recessing base |
| ZEB20/WG | ZEB-20 wire guard |
| ZEB30/WG | ZEB-30 wire guard |
Click here to download our full technical data sheet
