PEREZ
Linear
IP65 LED luminaires suitable for ceiling or suspension mounting in a wide variety of industrial and amenity applications, such as factories, warehouses and many other interiors or external sheltered areas.
• Single and twin size 4ft and 5ft versions available
• Opal and clear diffusers available
• Suitable for ceiling/suspension mounting
• 316 grade stainless steel clips as standard
• Polycarbonate body and diffuser
• Emergency options available
• Lifetime 30,000 hours
• 110V version available
TECHNICAL
Specifications

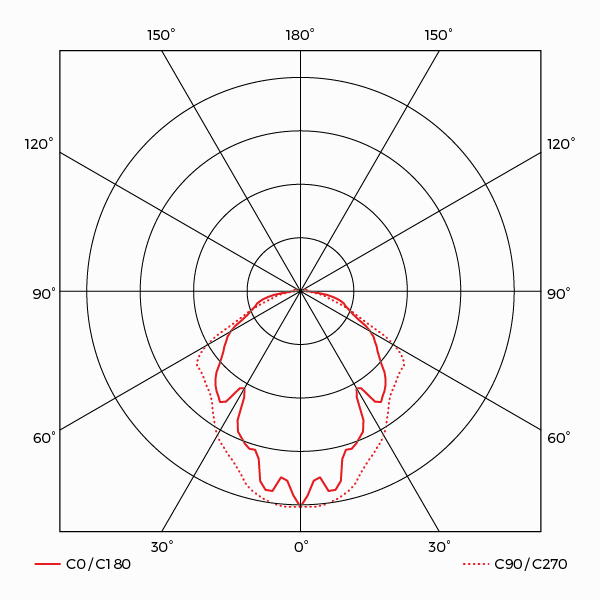

PHOTOMETRIC

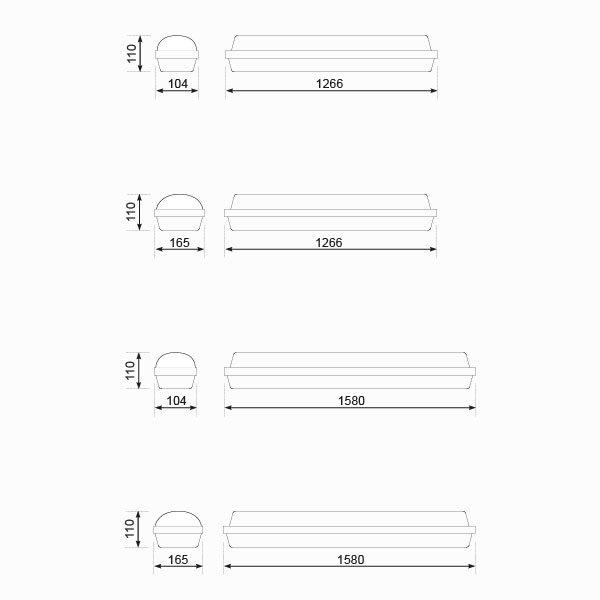

DIMENSIONS
CODE BUILDER
CP: Polycarbonate diffuser
OP: Opal diffuser
EM: Emergency
MS9: Microwave
MS9MD: Microwave corridor version
STEM: Self-test emergency
MB: Batten PIR sensor
Click here to download our full
technical data sheet
| DESCRIPTION | CODE | LUMENS (Lm) | EFFICACY (Lm/w) | IP RATING | WEIGHT (Kg) |
| Perez 4ft Batten Single 5000K 24W | CRP2414LED5OP | 2721 | 108 | IP65 | 2.5 |
| Perez 5ft Batten Single 5000K 35W | CRP3515LED5OP | 3900 | 108 | IP65 | 3.7 |
| Perez 4ft Batten Twin 5000K 48W | CRP4824LED5OP | 5324 | 108 | IP65 | 5 |
| Perez 5ft Batten Twin 5000K 70W | CRP7025LED5OP | 7711 | 108 | IP65 | 7 |
| DESCRIPTION | Perez 4ft Batten Single 5000K 24W |
|---|---|
| CODE | CRP2414LED5OP |
| LUMENS | 2721 |
| EFFICACY (LM/W) | 108 |
| IP RATING | IP65 |
| WEIGHT (KG) | 2.5 |
| DESCRIPTION | Perez 5ft Batten Single 5000K 35W |
|---|---|
| CODE | CRP3515LED5OP |
| LUMENS | 3900 |
| EFFICACY (LM/W) | 108 |
| IP RATING | IP65 |
| WEIGHT (KG) | 3.7 |
| DESCRIPTION | Perez 5ft Batten Single 5000K 35W |
| CODE | CRP4824LED5OP |
|---|---|
| LUMENS | 5324 |
| EFFICACY (LM/W) | 108 |
| IP RATING | IP65 |
| WEIGHT (KG) | 5 |
| DESCRIPTION | Perez 5ft Batten Twin 5000K 70W |
|---|---|
| CODE | CRP7025LED5OP |
| LUMENS | 7711 |
| EFFICACY (LM/W) | 108 |
| IP RATING | IP65 |
| WEIGHT (KG) | 7 |
