RICO
Linear, Batten
An IP20 LED luminaire with dry powder coated steel base, high transmission polycarbonate diffuser, polycarbonate end caps with surface and suspension mounting capabilities. Integral emergency versions available.
• Attractive low profile design
• Simple installation
• Ceiling or suspension mounting
• Polycarbonate end caps with 20mm diameter knockouts
• Polycarbonate high transmission diffuser
• Emergency versions available
• 4ft and 5ft options with high and low LED output
• Lifetime 30,000 hours
TECHNICAL
Specifications

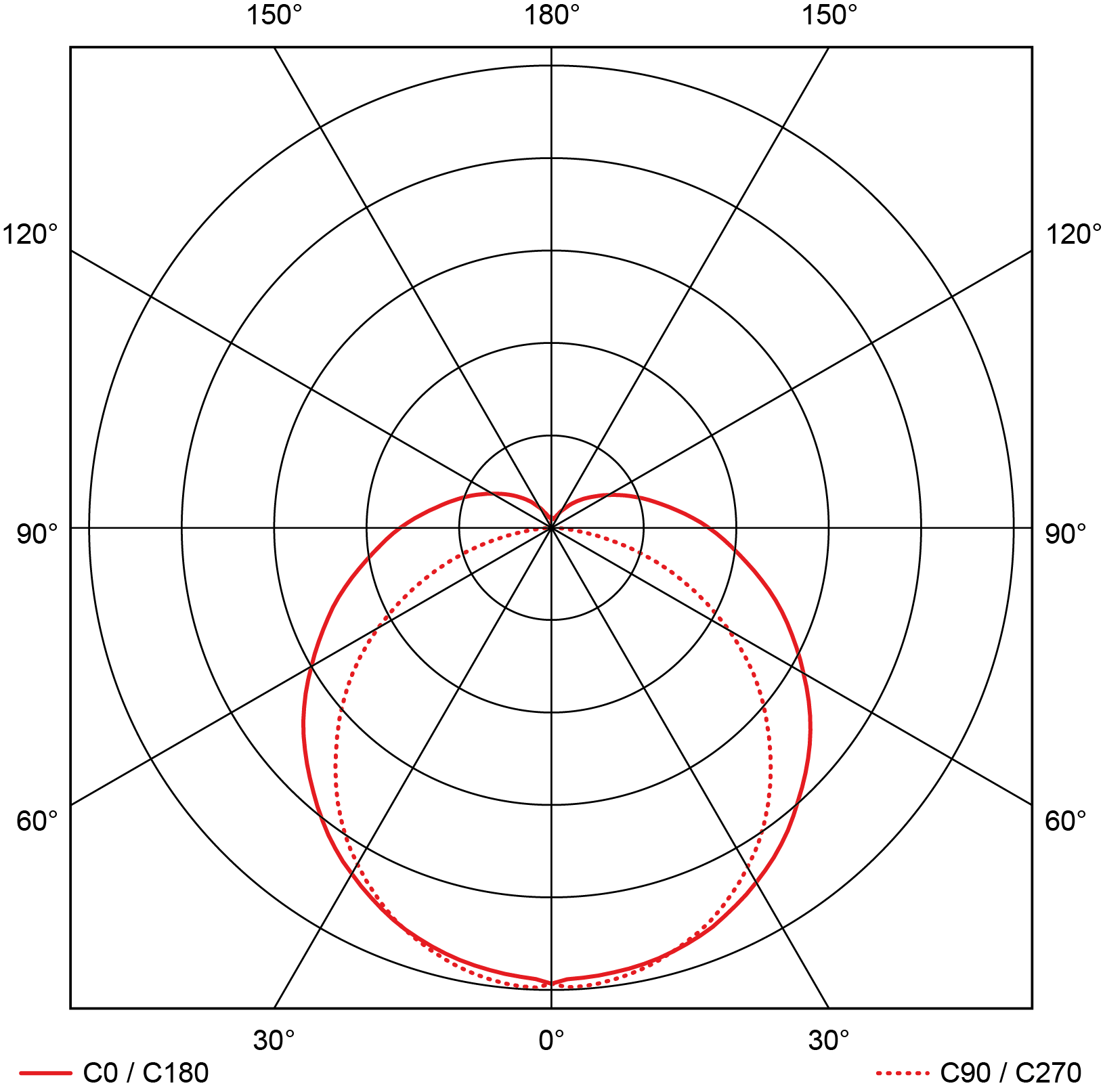

PHOTOMETRIC

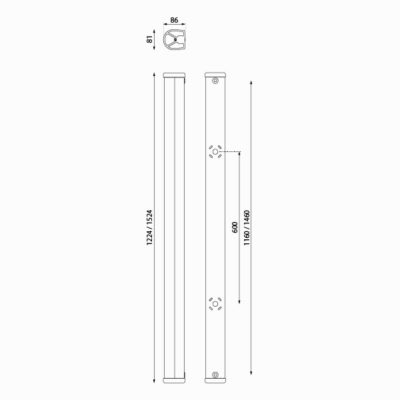

DIMENSIONS
| DESCRIPTION | CODE | LUMENS (Lm) | EFFICACY (Lm/w) | IP RATING | WEIGHT (Kg) |
| Rico 4ft Batten 4000K 24W | BTR244LED40 | 2690 | 112 | IP20 | 5 |
| Rico 4ft Batten 4000K 45W | BTR454LED40 | 4906 | 107 | IP20 | 5 |
| Rico 5ft Batten 4000K 30W | BTR305LED40 | 3270 | 109 | IP20 | 6 |
| Rico 5ft Batten 4000K 60W | BTR605LED40 | 6351 | 104 | IP20 | 6 |
| DESCRIPTION | Rico 4ft Batten 4000K 24W |
|---|---|
| CODE | BTR244LED40 |
| LUMENS | 2690 |
| EFFICACY (LM/W) | 112 |
| IP RATING | IP20 |
| WEIGHT (KG) | 5 |
| DESCRIPTION | Rico 4ft Batten 4000K 45W |
| Code | BTR454LED40 |
| Lumens | 4906 |
| EFFICACY (LM/W) | 107 |
| IP RATING | IP20 |
| WEIGHT (KG) | 5 |
| DESCRIPTION | Rico 5ft Batten 4000K 30W |
| Code | BTR305LED40 |
| Lumens | 3270 |
| EFFICACY (LM/W) | 109 |
| IP RATING | IP20 |
| WEIGHT (KG) | 6 |
| DESCRIPTION | Rico 5ft Batten 4000K 60W |
| Code | BTR605LED40 |
| Lumens | 6351 |
| EFFICACY (LM/W) | 104 |
| IP RATING | IP20 |
| WEIGHT (KG) | 6 |
