Rengo is a modular recessed LED ceiling fitting with an architectural contoured appearance. The fitting offers excellent light distribution from the bespoke diffuser, making this ideal for a wide range of applications including commercial and retail applications.
This recessed aesthetic profile LED luminaire offers outputs from 2500 – 7200 and has a quick and simple installation with a lay-in and draw up option.
Features
- High efficacy of up to 120 Lm/cW
- IP20
- Polycarbonate diffuser
- Fully integral LED emergency conversion
- DALI dimming option
- Outputs ranging from 2500lm – 7200lm
Contact the team to discuss the best solution for you.
TECHNICAL
Specifications

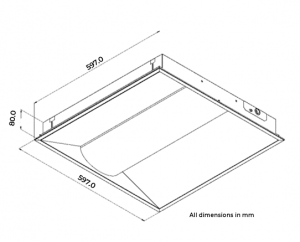

DIMENSIONS

PHOTOMETRIC

PRODUCTS
DESCRIPTION | CODE | SYSTEM POWER (W) | LUMENS (Lm) | EFFICACY (Lm/cW) |
Rengo LED 600 x 600, 2500, 4000K | REN66254KZ | 23.9 | 2715 | 113.6 |
Rengo LED 600 x 600, 3300, 4000K | REN66334KZ | 31.9 | 3431 | 107.4 |
Rengo LED 600 x 600, 4500, 4000K | REN66454KZ | 38.3 | 4572 | 119.5 |
Rengo LED 600 x 600, 6000, 4000K | REN66604KZ | 54.7 | 6121 | 112 |
Rengo LED 600 x 600, 7200, 4000K | REN66724KZ | 69.4 | 7270 | 104.8 |
DESCRIPTION | Rengo LED 600 x 600, 2500, 4000K |
---|---|
CODE | REN66254KZ |
SYSTEM POWER (W) | 23.9 |
LUMENS | 2715 |
EFFICACY (Lm/cW) | 113.6 |
DESCRIPTION | Rengo LED 600 x 600, 3300, 4000K |
---|---|
CODE | REN66334KZ |
SYSTEM POWER (W) | 31.9 |
LUMENS | 3431 |
EFFICACY (Lm/cW) | 107.4 |
DESCRIPTION | Rengo LED 600 x 600, 4500, 4000K |
---|---|
CODE | REN66454KZ |
SYSTEM POWER (W) | 38.3 |
LUMENS | 4572 |
EFFICACY (Lm/cW) | 119.5 |
DESCRIPTION | Rengo LED 600 x 600, 6000, 4000K |
---|---|
CODE | REN66604KZ |
SYSTEM POWER (W) | 54.7 |
LUMENS | 6121 |
EFFICACY (Lm/cW) | 112 |
DESCRIPTION | Rengo LED 600 x 600, 7200, 4000K |
---|---|
CODE | REN66724KZ |
SYSTEM POWER (W) | 69.4 |
LUMENS | 7270 |
EFFICACY (Lm/cW) | 104.8 |
ACCESSORIES
DESCRIPTION | CODE |
Draw-up - External fix side support arms | MSBKX |
DESCRIPTION | Draw-up - External fix side support arms |
---|---|
CODE | MSBKX |
