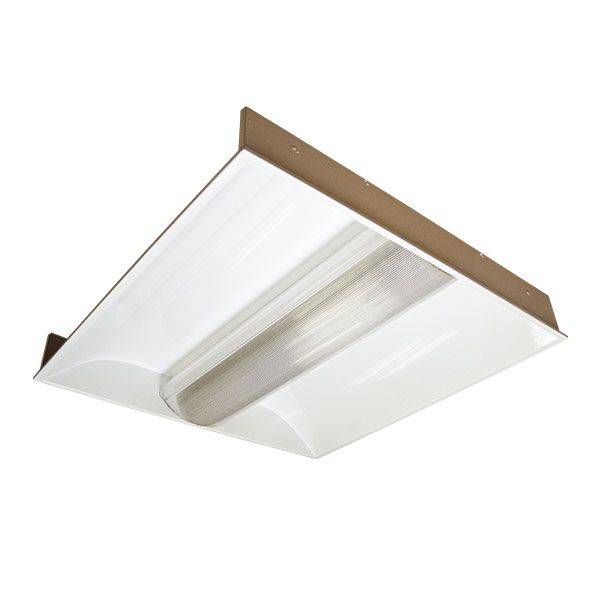

PALMITO
Recessed Luminaire
A range of economical low profile recessed modular luminaires, suitable for use in many interior applications including office lighting, reception areas, meeting rooms and other commercial areas.
Palmito has a 5 Year Warranty and a guaranteed 50,000 hours life.
• IP20
• High transmission opal diffuser
• Recessed lay-in mounting
• 3 hour maintained emergency versions available
• Lifetime 50,000 hours
TECHNICAL
Specifications
PHOTOMETRIC

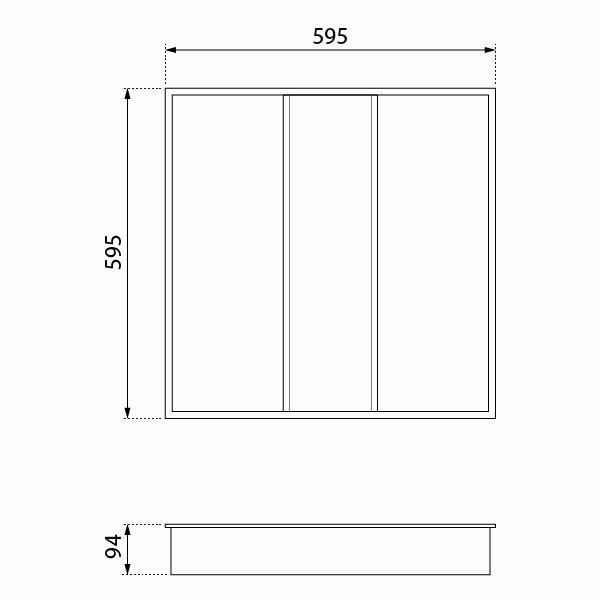

DIMENSIONS
CODE BUILDER
DA: Dali/switch dimming
EM: Emergency
STEM: Self-test emergency
30: Colour 3000K
Click here to download our full
technical data sheet
| DESCRIPTION | CODE | LUMENS (Lm) | EFFICACY (Lm/w) | IP RATING | WEIGHT (Kg) |
| Palmito Low Glare Recessed Lay-In 23W 4000K | RPX23T4LED40OP | 2789 | 126 | IP20 | 4.3 |
| DESCRIPTION | Palmito Low Glare Recessed Lay-In 23W 4000K |
|---|---|
| CODE | RPX23T4LED40OP |
| LUMENS | 2789 |
| EFFICACY (LM/W) | 126 |
| IP RATING | IP20 |
| WEIGHT (KG) | 4.3 |
