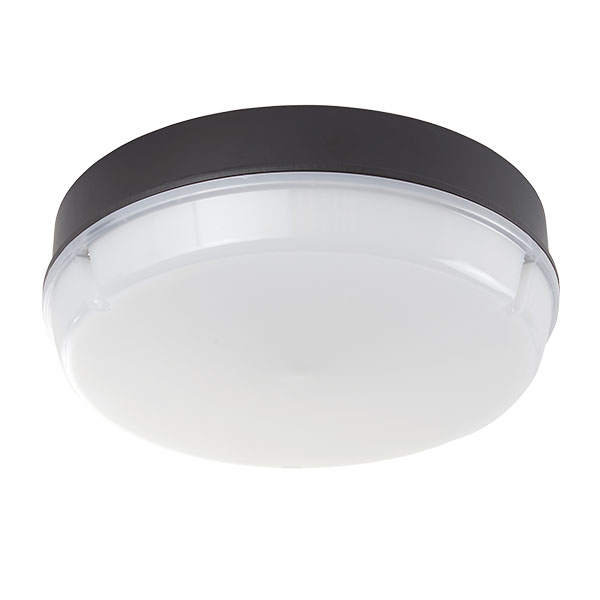

SANTOS GEN 2
Surface Mounted, Bulkhead
A range of surface mounted IP65 vandal resistant amenity luminaires. Constructed from a cast aluminium round base, with opal or clear prismatic polycarbonate diffuser. This light is suitable for walkways, corridors, doorways, emergency exit routes, stairwells and external sheltered areas.
• Attractive compact design
• Simple installation
• IP65
• Clear prismatic or opal polycarbonate diffusers
• Emergency versions available
• White or black diecast aluminium base
• Lifetime 50,000 hours
TECHNICAL
Specifications

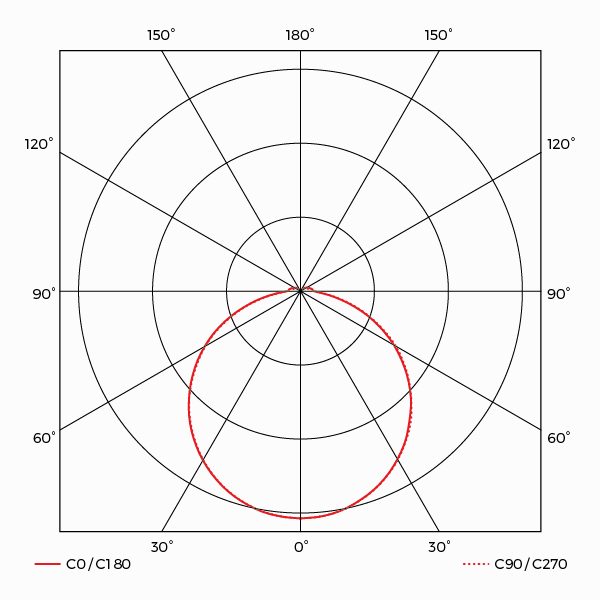

PHOTOMETRIC

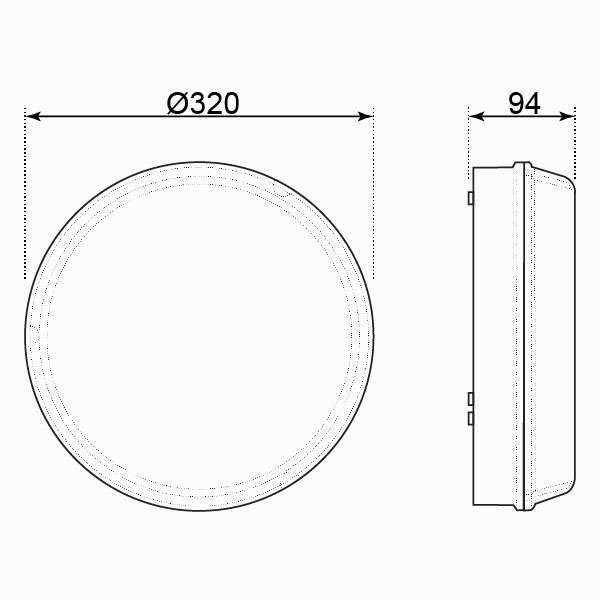

DIMENSIONS
CODE BUILDER
WP: White base, clear diffuser
WO: White base, opal diffuser
BP: Black base, clear diffuser
BO: Black base, opal diffuser
EM: Emergency
STEM: Self-test emergency
MS9: Microwave sensor
DA: DALI/switch dimming
SS: Security screws
Click here to download our full
technical data sheet
Black Base Opal Diffuser
| DESCRIPTION | CODE | SYSTEM POWER (W) | LUMENS (Lm) | EFFICACY (Lm/cW) |
| Santos Gen 2, LED Bulkhead, 1100, 4000k, Black Base opal diffuser |
DLS211T4BO40 |
11 | 1100 | 100 |
| Santos Gen 2, LED Bulkhead, 1700, 4000k Black Base opal diffuser |
DLS216T4BO40 |
16.2 | 1712 | 105.7 |
| Santos Gen 2, LED Bulkhead, 2400, 400K, Black Base opal diffuser |
DLS222T4BO40 |
21.7 | 2466 | 113.6 |
| DESCRIPTION | Santos Gen 2, LED Bulkhead, 1100, 4000k, Black Base opal diffuser |
|---|---|
| CODE | DLS211T4BO40 |
| SYSTEM POWER (W) | 11 |
| LUMENS | 1100 |
| EFFICACY (Lm/cW) | 100 |
| DESCRIPTION | Santos Gen 2, LED Bulkhead, 1700, 4000k Black Base opal diffuser |
|---|---|
| CODE | DLS216T4BO40 |
| SYSTEM POWER (W) | 16.2 |
| LUMENS | 1712 |
| EFFICACY (Lm/cW) | 105.7 |
| DESCRIPTION | Santos Gen 2, LED Bulkhead, 2400, 400K, Black Base opal diffuser |
|---|---|
| CODE |
DLS222T4BO40 |
| SYSTEM POWER (W) | 21.7 |
| LUMENS | 2466 |
| EFFICACY (Lm/cW) | 113.6 |
Black Base Clear Diffuser
| DESCRIPTION | CODE | SYSTEM POWER (W) | LUMENS (Lm) | EFFICACY (Lm/cW) |
| Santos Gen 2, LED Bulkhead, 1200, 400K, Black base clear diffuser |
DLS211T4BP40 |
11.2 | 1250 | 111.6 |
| Santos Gen 2, LED Bulkhead, 1900, 4000k Black base clear diffuser |
DLS216T4BP40 |
16.2 | 1986 | 122.6 |
| Santos Gen 2, LED Bulkhead, 2800, 4000k, Black base clear diffuser |
DLS222T4BP40 |
21.6 | 2867 | 132.7 |
| DESCRIPTION | Santos Gen 2, LED Bulkhead, 1200, 400K, Black base clear diffuser |
|---|---|
| CODE |
DLS211T4BP40 |
| SYSTEM POWER (W) | 11.2 |
| LUMENS | 1250 |
| EFFICACY (Lm/cW) | 111.6 |
| DESCRIPTION | Santos Gen 2, LED Bulkhead, 1900, 4000k Black base clear diffuser |
|---|---|
| CODE |
DLS216T4BP40 |
| SYSTEM POWER (W) | 16.2 |
| LUMENS | 1986 |
| EFFICACY (Lm/cW) | 122.6 |
| DESCRIPTION | Santos Gen 2, LED Bulkhead, 2800, 4000k, Black base clear diffuser |
|---|---|
| CODE |
DLS222T4BP40 |
| SYSTEM POWER (W) | 21.6 |
| LUMENS | 2867 |
| EFFICACY (Lm/cW) | 132.7 |
