ISLA ADVANCED Gen 2
TP(a) rated LED recessed panel
UGR<19, TPa rated LED panel offering excellent light distribution suitable for ceiling mounting.
Recessed, surface mounting or suspended installation.
- High efficacy of up to 125 Lm/cW
- IP20
- TP(a) diffuser
- UGR<19
- Fully integral LED emergency, self test option available
- DALI dimming option
- Outputs ranging from 3170Lm – 4640Lumens
- 600 x 600 & 1200 x 300 Option
- Tunable white option- 2700K-6500K
TECHNICAL
Specifications

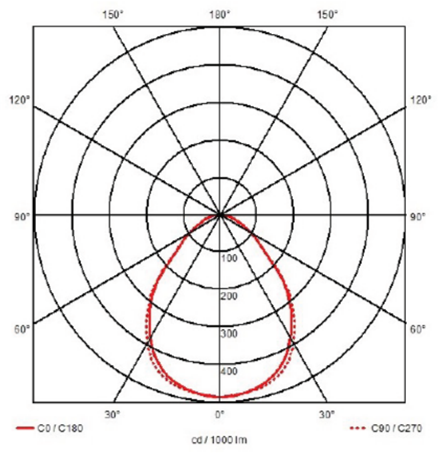

PHOTOMETRIC
DIMENSIONS
Click here to download our full technical data sheet for ISLA TP(a) rated
CODE BUILDER
DA: Dali dimming
EM: Emergency
Isla Advanced Gen 2, 600 x 600
| CODE | Description | Lumen Output (Lm) | System Power (W) | Efficacy (Lm/cW) |
| ISAD25664K | Isla Adv Gen 2, 2500, 600 x600, 4000k | 2515 | 19.1 | 131.6 |
| ISAD31664K | Isla Adv Gen 2, 3100, 600 x600, 4000k | 3170 | 25.2 | 125.8 |
| ISAD41664K | Isla Adv Gen 2, 4100, 600 x 600, 4000k | 4170 | 33.2 | 125.6 |
| ISAD46664K | Isla Adv Gen 2, 4600, 600 x 600, 4000k | 4640 | 37.6 | 123.4 |
| Code | ISAD25664K |
|---|---|
| Description | Isla Adv Gen 2, 2500, 600 x600, 4000k |
| Lumen Output (Lm) | 2515 |
| System Power (W) | 19.1 |
| Efficacy (Lm/cW) | 131.6 |
| Code | ISAD31664K |
|---|---|
| Description | Isla Adv Gen 2, 3100, 600 x600, 4000k |
| Lumen Output (Lm) | 3170 |
| System Power (W) | 25.2 |
| Efficacy (Lm/cW) | 125.8 |
| Code | ISAD41664K |
|---|---|
| Description | Isla Adv Gen 2, 4100, 600 x 600, 4000k |
| Lumen Output (Lm) | 4170 |
| System Power (W) | 33.2 |
| Efficacy (Lm/cW) | 125.6 |
| Code | ISAD46664K |
|---|---|
| Description | Isla Adv Gen 2, 4100, 600 x 600, 4000k |
|
Lumen Output (Lm) |
4640 |
| System Power (W) | 37.6 |
| Efficacy (Lm/cW) | 123.4 |
Isla Advanced Gen 2, 1200 x 300
| CODE | Description | Lumen Output (Lm) | System Power (W) | Efficacy (Lm/cW) |
| ISAD3112304K | Isla Adv Gen 2, 3100, 1200 x 300, 4000k | 3170 | 25.2 | 125.8 |
| ISAD4112304K | Isla Adv Gen 2, 4100, 1200 x 300, 4000K | 4170 | 33.2 | 125.6 |
| ISAD4612304K | Isla Adv Gen 2, 4600, 1200 x 300, 4000K | 4640 | 37.6 | 123.4 |
| Code | ISAD3112304K |
|---|---|
| Description | Isla Adv Gen 2, 3100, 1200 x 300, 4000k |
| Lumen Output (Lm) | 3170 |
| System Power (W) | 25.2 |
| Efficacy (Lm/cW) | 125.8 |
| Code | ISAD4112304K |
|---|---|
| Description | Isla Adv Gen 2, 4100, 1200 x 300, 4000K |
| Lumen Output (Lm) | 4170 |
| System Power (W) | 33.2 |
| Efficacy (Lm/cW) | 125.6 |
| Code | ISAD4612304K |
|---|---|
| Description | Isla Adv Gen 2, 4600, 1200 x 300, 4000K |
|
Lumen Output (Lm) |
4640 |
| System Power (W) | 37.6 |
| Efficacy (Lm/cW) | 123.4 |
Isla Advanced Gen 2, 600 x 600 Tunable White
| CODE | Description | Lumen Output (Lm) | System Power (W) | Efficacy (Lm/cW) |
| ISAD3166TWDA | Isla Adv Gen 2, 3100, 600 x 600, Tunable White | 3170 | 25.2 | 125.8 |
| ISAD4166TWDA | Isla Adv Gen 2, 4100, 600 x 600, Tunable White | 4170 | 33.2 | 125.6 |
| ISAD4666TWDA | Isla Adv Gen 2, 4600, 600 x 600, Tunable White | 4640 | 37.6 | 123.4 |
| Code | ISAD3166TWDA |
|---|---|
| Description | Isla Adv Gen 2, 3100, 600 x 600, Tunable White |
| Lumen Output (Lm) | 3170 |
| System Power (W) | 25.2 |
| Efficacy (Lm/cW) | 125.8 |
| Code | ISAD4166TWDA |
|---|---|
| Description | Isla Adv Gen 2, 4100, 600 x 600, Tunable White |
| Lumen Output (Lm) | 4170 |
| System Power (W) | 33.2 |
| Efficacy (Lm/cW) | 125.6 |
| Code | ISAD4666TWDA |
|---|---|
| Description | Isla Adv Gen 2, 4600, 600 x 600, Tunable White |
|
Lumen Output (Lm) |
4640 |
| System Power (W) | 37.6 |
| Efficacy (Lm/cW) | 123.4 |
Accessories
| CODE | DESCRIPTION |
| ISAD66-SURFACEKIT | 600 x 600 Surface Mount Kit |
| ISAD66-SURFACEKIT | 1200 x 300 Suspension Kit |
| ISAD66-SUSPKIT | 1200 x 300 Suspension Kit |
| ISAD1230-SUSPKIT | 1200 x 300 Suspension Kit |
| CODE | ISAD66-SURFACEKIT |
|---|---|
| DESCRIPTION | 600 x 600 Surface Mount Kit |
| CODE | ISAD66-SURFACEKIT |
|---|---|
| DESCRIPTION | 1200 x 300 Suspension Kit |
| CODE | ISAD66-SUSPKIT |
|---|---|
| DESCRIPTION | 1200 x 300 Suspension Kit |
| CODE | ISAD1230-SUSPKIT |
|---|---|
| DESCRIPTION | 1200 x 300 Suspension Kit |
