Leat is a continuous or standalone extruded LED linear fitting, available with recessed, surface or suspended installation options.
Simple installation is a key benefit thanks to the positive coupled connector system which ensures tight true lines are achieved. The luminaire is designed with an Opaline acrylic diffuser and aluminium extrusion coated body and has three pre-set lumen output options per length.
Features
- Continuous or standalone options
- Efficacy up to 122 Lm/cW
- IP20
- 3 hour maintained emergency versions available
- Opaline acrylic diffuser
- DALI dimming option
- Recessed, surface and suspended mounting options available
- Choice of three lumen outputs per unit length
Contact the team to discuss the best solution for you.
TECHNICAL
Specifications
DIMENSIONS
DIMENSIONS
PHOTOMETRIC

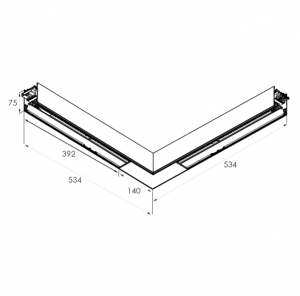

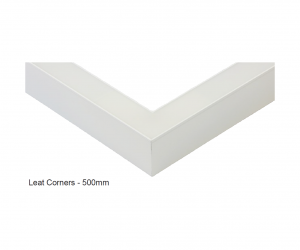

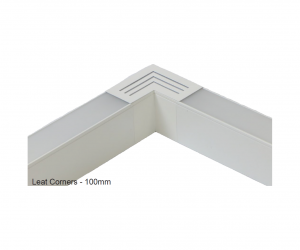

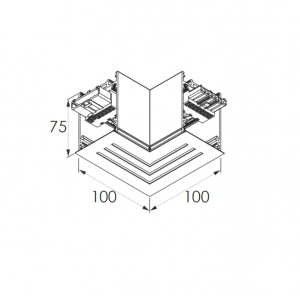

LEAT CORNERS
PRODUCT CODES
Leat Standalone 1m
| DESCRIPTION | CODE | SYSTEM POWER (W) | LUMENS (Lm) | EFFICACY (Lm/cW) |
| Leat Standalone, 1m, 1500, 4000K, Low output | LEAS10224KZ | 12.9 | 1531 | 118.7 |
| Leat Standalone, 1m, 2200, 4000K, Medium output | LEAS10224KZ | 19.6 | 2297 | 117.2 |
| Leat Standalone, 1m, 3000, 4000K, High output | LEAS10304KZ | 26.7 | 3033 | 113.6 |
| DESCRIPTION | Leat Standalone, 1m, 1500, 4000K, Low output |
|---|---|
| CODE | LEAS10154KZ |
| SYSTEM POWER (W) | 12.9 |
| LUMENS | 1531 |
| EFFICACY (Lm/cW) | 118.7 |
| DESCRIPTION | Leat Standalone, 1m, 2200, 4000K, Medium output |
|---|---|
| CODE | LEAS10224KZ |
| SYSTEM POWER (W) | 19.6 |
| LUMENS | 2297 |
| EFFICACY (Lm/cW) | 117.2 |
| DESCRIPTION | Leat Standalone, 1m, 3000, 4000K, High output |
|---|---|
| CODE | LEAS10304KZ |
| SYSTEM POWER (W) | 26.7 |
| LUMENS | 3033 |
| EFFICACY (Lm/cW) | 113.6 |
Leat Standalone 1.5m
| DESCRIPTION | CODE | SYSTEM POWER (W) | LUMENS (Lm) | EFFICACY (Lm/cW) |
| Leat Standalone, 1.5m, 2200, 4000k, Low output | LEAS15224KZ | 21.4 | 2382 | 111.3 |
| Leat Standalone, 1.5m, 3300, 4000k, Medium output | LEAS15334KZ | 29.6 | 3331 | 112.5 |
| Leat Standalone, 1.5m, 4500, 4000k, High output | LEAS15454KZ | 42.9 | 4584 | 106.9 |
| DESCRIPTION | Leat Standalone, 1.5m, 2200, 4000k, Low output |
|---|---|
| CODE | LEAS15224KZ |
| SYSTEM POWER (W) | 21.4 |
| LUMENS | 2382 |
| EFFICACY (Lm/cW) | 111.3 |
| DESCRIPTION | Leat Standalone, 1.5m, 3300, 4000k, Medium output |
|---|---|
| CODE | LEAS15334KZ |
| SYSTEM POWER (W) | 29.6 |
| LUMENS | 3331 |
| EFFICACY (Lm/cW) | 112.5 |
| DESCRIPTION | Leat Standalone, 1.5m, 4500, 4000k, High output |
|---|---|
| CODE | LEAS15454KZ |
| SYSTEM POWER (W) | 42.9 |
| LUMENS | 4584 |
| EFFICACY (Lm/cW) | 106.9 |
Leat Standalone 2m
| DESCRIPTION | CODE | SYSTEM POWER (W) | LUMENS (Lm) | EFFICACY (Lm/cW) |
| Leat Standalone, 2m, 3000, 4000k, Low output | LEAS20304KZ | 26.7 | 3152 | 118.1 |
| Leat Standalone, 2m, 4400, 4000k, Medium output | LEAS20444KZ | 38.9 | 4432 | 113.9 |
| Leat Standalone, 2m, 6000, 4000k, High output | LEAS20604KZ | 54.6 | 6035 | 110.5 |
| DESCRIPTION | Leat Standalone, 2m, 3000, 4000k, Low output |
|---|---|
| CODE | LEAS20304KZ |
| SYSTEM POWER (W) | 26.7 |
| LUMENS | 3152 |
| EFFICACY (Lm/cW) | 118.1 |
| DESCRIPTION | Leat Standalone, 2m, 4400, 4000k, Medium output |
|---|---|
| CODE | LEAS20444KZ |
| SYSTEM POWER (W) | 38.9 |
| LUMENS | 4432 |
| EFFICACY (Lm/cW) | 113.9 |
| DESCRIPTION | Leat Standalone, 2m, 6000, 4000k, High output |
|---|---|
| CODE | LEAS20604KZ |
| SYSTEM POWER (W) | 54.6 |
| LUMENS | 6035 |
| EFFICACY (Lm/cW) | 110.5 |
Leat Standalone 3m
| DESCRIPTION | CODE | SYSTEM POWER (W) | LUMENS (Lm) | EFFICACY (Lm/cW) |
| Leat Standalone, 3m, 4500, 4000k, Low output | LEAS30454KZ | 39.4 | 4811 | 122.1 |
| Leat Standalone, 3m, 6600, 4000k, Medium output | LEAS30664KZ | 58.2 | 6760 | 116.2 |
| Leat Standalone, 3m, 9000, 4000k, High output | LEAS30904KZ | 81.4 | 9211 | 113.2 |
| DESCRIPTION | Leat Standalone, 3m, 4500, 4000k, Low output |
|---|---|
| CODE | LEAS30454KZ |
| SYSTEM POWER (W) | 39.4 |
| LUMENS | 4811 |
| EFFICACY (Lm/cW) | 122.1 |
| DESCRIPTION | Leat Standalone, 3m, 6600, 4000k, Medium output |
|---|---|
| CODE | LEAS30664KZ |
| SYSTEM POWER (W) | 58.2 |
| LUMENS | 6760 |
| EFFICACY (Lm/cW) | 116.2 |
| DESCRIPTION | Leat Standalone, 3m, 9000, 4000k, High output |
|---|---|
| CODE | LEAS30904KZ |
| SYSTEM POWER (W) | 81.4 |
| LUMENS | 9211 |
| EFFICACY (Lm/cW) | 113.2 |
Leat Continuous 1m
| DESCRIPTION | CODE | SYSTEM POWER (W) | LUMENS (Lm) | EFFICACY (Lm/cW) |
| Leat Continuous, 1m, 2200, 4000k, Low output | LEAC10154KZ | 12.9 | 1531 | 118.7 |
| Leat Continuous, 1m, 3300, 4000k, Medium output | LEAC10224KZ | 19.6 | 2297 | 117.2 |
| Leat Continuous, 1m, 4500, 4000k, High output | LEAC10304KZ | 26.7 | 3033 | 113.6 |
| DESCRIPTION | Leat Continuous, 1m, 2200, 4000k, Low output |
|---|---|
| CODE | LEAC10154KZ |
| SYSTEM POWER (W) | 21.4 |
| LUMENS | 2382 |
| EFFICACY (Lm/cW) | 111.3 |
| DESCRIPTION | Leat Continuous, 1m, 3300, 4000k, Medium output |
|---|---|
| CODE | LEAC15334KZ |
| SYSTEM POWER (W) | 29.6 |
| LUMENS | 3331 |
| EFFICACY (Lm/cW) | 112.5 |
| DESCRIPTION | Leat Continuous, 1m, 4500, 4000k, High output |
|---|---|
| CODE | LEAC15334KZ |
| SYSTEM POWER (W) | 42.9 |
| LUMENS | 4584 |
| EFFICACY (Lm/cW) | 106.9 |
Leat Continuous 1.5m
| DESCRIPTION | CODE | SYSTEM POWER (W) | LUMENS (Lm) | EFFICACY (Lm/cW) |
| Leat Continuous, 1.5m, 2200, 4000k, Low output | LEAC15224KZ | 21.4 | 2382 | 111.3 |
| Leat Continuous, 1.5m, 3300, 4000k, Medium output | LEAC15454KZ | 29.6 | 3331 | 112.5 |
| Leat Continuous, 1.5m, 4500, 4000k, High output | LEAC15334KZ | 42.9 | 4584 | 106.9 |
| DESCRIPTION | Leat Continuous, 1.5m, 2200, 4000k, Low output |
|---|---|
| CODE | LEAC15224KZ |
| SYSTEM POWER (W) | 21.4 |
| LUMENS | 2382 |
| EFFICACY (Lm/cW) | 111.3 |
| DESCRIPTION | Leat Continuous, 1.5m, 3300, 4000k, Medium output |
|---|---|
| CODE | LEAC15454KZ |
| SYSTEM POWER (W) | 29.6 |
| LUMENS | 3331 |
| EFFICACY (Lm/cW) | 112.5 |
| DESCRIPTION | Leat Continuous, 1.5m, 4500, 4000k, High output |
|---|---|
| CODE | LEAC15334KZ |
| SYSTEM POWER (W) | 42.9 |
| LUMENS | 4584 |
| EFFICACY (Lm/cW) | 106.9 |
Leat Continuous 2m
| DESCRIPTION | CODE | SYSTEM POWER (W) | LUMENS (Lm) | EFFICACY (Lm/cW) |
| Leat Continuous, 2m, 3000, 4000k, Low output | LEAC20304KZ | 26.7 | 3152 | 118.1 |
| Leat Continuous, 2m, 4400, 4000k, Medium output | LEAC20444KZ | 38.9 | 4432 | 113.9 |
| Leat Continuous, 2m, 6000, 4000k, High output | LEAC20604KZ | 54.6 | 6035 | 110.5 |
| DESCRIPTION | Leat Continuous, 2m, 3000, 4000k, Low output |
|---|---|
| CODE | LEAC20304KZ |
| SYSTEM POWER (W) | 26.7 |
| LUMENS | 3152 |
| EFFICACY (Lm/cW) | 118.1 |
| DESCRIPTION | Leat Continuous, 2m, 4400, 4000k, Medium output |
|---|---|
| CODE | LEAC20444KZ |
| SYSTEM POWER (W) | 38.9 |
| LUMENS | 4432 |
| EFFICACY (Lm/cW) | 113.9 |
| DESCRIPTION | Leat Continuous, 2m, 6000, 4000k, High output |
|---|---|
| CODE | LEAC20604KZ |
| SYSTEM POWER (W) | 54.6 |
| LUMENS | 6035 |
| EFFICACY (Lm/cW) | 110.5 |
Leat Continuous 3m
| DESCRIPTION | CODE | SYSTEM POWER (W) | LUMENS (Lm) | EFFICACY (Lm/cW) |
| Leat Continuous, 3m, 4500, 4000k, Low output | LEAC30454KZ | 39.4 | 4811 | 122.1 |
| Leat Continuous, 3m, 6600, 4000k, Medium output | LEAC30664KZ | 58.2 | 6760 | 116.2 |
| Leat Continuous, 3m, 9000, 4000k, High output | LEAC30904KZ | 81.4 | 9211 | 113.2 |
| DESCRIPTION | Leat Continuous, 3m, 4500, 4000k, Low output |
|---|---|
| CODE | LEAC30454KZ |
| SYSTEM POWER (W) | 39.4 |
| LUMENS | 4811 |
| EFFICACY (Lm/cW) | 122.1 |
| DESCRIPTION | Leat Continuous, 3m, 6600, 4000k, Medium output |
|---|---|
| CODE | LEAC30664KZ |
| SYSTEM POWER (W) | 58.2 |
| LUMENS | 6760 |
| EFFICACY (Lm/cW) | 116.2 |
| DESCRIPTION | Leat Continuous, 3m, 9000, 4000k, High output |
|---|---|
| CODE | LEAC30904KZ |
| SYSTEM POWER (W) | 81.4 |
| LUMENS | 9211 |
| EFFICACY (Lm/cW) | 113.2 |
CORNER & ACCESSORIES
Leat Corner
| DESCRIPTION | CODE |
| Leat Corner, 100mm, 90 degrees with line design | LEA90CP |
| Leat Corner, 534x534mm, 90 degree, 1500, 4000k, Low output | LEA90CL10154KZ |
| Leat Corner, 534x534mm, 90 degree, 2200, 4000k, Medium output | LEAC30904KZ |
| Leat Corner, 534x534mm, 90 degree, 3000, 4000k, High output | LEA90CL10304KZ |
| DESCRIPTION | Leat Continuous, 3m, 4500, 4000k, Low output |
|---|---|
| CODE | LEAC30454KZ |
| DESCRIPTION | Leat Continuous, 3m, 6600, 4000k, Medium output |
|---|---|
| CODE | LEAC30664KZ |
| DESCRIPTION | Leat Continuous, 3m, 9000, 4000k, High output |
|---|---|
| CODE | LEAC30904KZ |
| DESCRIPTION | Leat Corner, 534x534mm, 90 degree, 3000, 4000k, High output |
|---|---|
| CODE | LEA90CL10304KZ |
Leat Continuous Diffuser
| DESCRIPTION | CODE |
| Leat Continuous diffuser 1 metre | LEAOP10 |
| Leat Continuous diffuser 1.5 metre | LEAOP15 |
| Leat Continuous diffuser 2 metre | LEAOP20 |
| Leat Continuous diffuser 3 metre | LEAOP30 |
| Leat Continuous diffuser 5 metre | LEAOP50 |
| Leat Continuous diffuser 10 metre | LEAOP100 |
| Leat Continuous diffuser 20 metre | LEAOP200 |
| Leat Continuous diffuser 30 metre | LEAOP300 |
| Leat Continuous diffuser 40 metre | LEAOP400 |
| Leat Continuous diffuser 50 metre | LEAOP500 |
| DESCRIPTION | Leat Continuous diffuser 1 metre |
|---|---|
| CODE | LEAOP10 |
| DESCRIPTION | Leat Continuous diffuser 1.5 metre |
|---|---|
| CODE | LEAOP15 |
| DESCRIPTION | Leat Continuous diffuser 2 metre |
|---|---|
| CODE | LEAOP20 |
| DESCRIPTION | Leat Continuous diffuser 3 metre |
|---|---|
| CODE | LEAOP30 |
| DESCRIPTION | Leat Continuous diffuser 5 metre |
|---|---|
| CODE | LEAOP50 |
| DESCRIPTION | Leat Continuous diffuser 10 metre |
|---|---|
| CODE | LEAOP100 |
| DESCRIPTION | Leat Continuous diffuser 20 metre |
|---|---|
| CODE | LEAOP200 |
| DESCRIPTION | Leat Continuous diffuser 30 metre |
|---|---|
| CODE | LEAOP300 |
| DESCRIPTION | Leat Continuous diffuser 40 metre |
|---|---|
| CODE | LEAOP400 |
| DESCRIPTION | Leat Continuous diffuser 50 metre |
|---|---|
| CODE | LEAOP500 |
Accessories
| DESCRIPTION | CODE |
| Recessing frame side rail kit 1 metre - set of 2 | LEARE10 |
| Recessing frame side rail kit 1.5 metre - set of 2 | LEARE15 |
| Recessing frame side rail kit 2 metre - set of 2 | LEARE20 |
| Recessing frame side rail kit 3 metre - set of 2 | LEARE30 |
| Recessing frame end trim kit - set of 2 | LEAREETK |
| Leat Recessed Mounting Bracket 1m | LEAPL10 |
| Leat Recessed Mounting Bracket 1.5m | LEAPL15 |
| Leat Recessed Mounting Bracket 2m | LEAPL20 |
| Leat Recessed Mounting Bracket 3m | LEAPL30 |
| Leat End Caps - set of 2 | LEAEC |
| Leat Suspension 1.5 metre - set of 2 | LEA15SU |
| Leat Suspension 5 metre - set of 2 | LEA50SU |
| Leat Surface Mounting clips - set of 2 | LEAMC |
| Leat Diffuser expansion kit - Recessed | LEADEKR |
| Leat Diffuser expansion kit - Surface / Suspended | LEADEKS |
| DESCRIPTION | Recessing frame side rail kit 1 metre - set of 2 |
|---|---|
| CODE | LEARE10 |
| DESCRIPTION | Recessing frame side rail kit 1.5 metre - set of 2 |
|---|---|
| CODE | LEARE15 |
| DESCRIPTION | Recessing frame side rail kit 2 metre - set of 2 |
|---|---|
| CODE | LEARE20 |
| DESCRIPTION | Recessing frame side rail kit 3 metre - set of 2 |
|---|---|
| CODE | LEARE30 |
| DESCRIPTION | Recessing frame end trim kit - set of 2 |
|---|---|
| CODE | LEAREETK |
| DESCRIPTION | Leat Recessed Mounting Bracket 1m |
|---|---|
| CODE | LEAPL10 |
| DESCRIPTION | Leat Recessed Mounting Bracket 1.5m |
|---|---|
| CODE | LEAPL15 |
| DESCRIPTION | Leat Recessed Mounting Bracket 2m |
|---|---|
| CODE | LEAPL20 |
| DESCRIPTION | Leat Recessed Mounting Bracket 3m |
|---|---|
| CODE | LEAPL30 |
| DESCRIPTION | Leat End Caps - set of 2 |
|---|---|
| CODE | LEAEC |
| DESCRIPTION | Leat Suspension 1.5 metre - set of 2 |
|---|---|
| CODE | LEA15SU |
| DESCRIPTION | Leat Suspension 5 metre - set of 2 |
|---|---|
| CODE | LEA50SU |
| DESCRIPTION | Leat Surface Mounting clips - set of 2 |
|---|---|
| CODE | LEAMC |
| DESCRIPTION | Leat Diffuser expansion kit - Recessed |
|---|---|
| CODE | LEADEKR |
| DESCRIPTION | Leat Diffuser expansion kit - Surface / Suspended |
|---|---|
| CODE | LEADEKS |
CODE BUILDER
Add EL for Emergency Option – available with 1m length
Add S for Standalone or C for Continuous
Control Gear:
Z = Fixed Output
DD = DALI Dimming
Click here to download our full technical data sheet
RELATED
Products
Specialist Lighting Atex – Zone 2
Specialist Lighting Atex – Zone 1
