CARMONA

Carmona Image



CARMONA

Mild Steel



A root or flange mounted exterior bollard luminaire. Constructed from black polyester coated steel tubular body and top cap. Opal or clear polycarbonate injection moulded diffusers and offer different aesthetic and photometric options. Suitable for use along pathways as well as decorative lighting around buildings and general security.

• Strong steel body
• Tough polycarbonate diffuser
• Easy access to control gear
• IP65 ingress protection
• Lifetime 50,000 hours

TECHNICAL

Specifications

PHOTOMETRIC

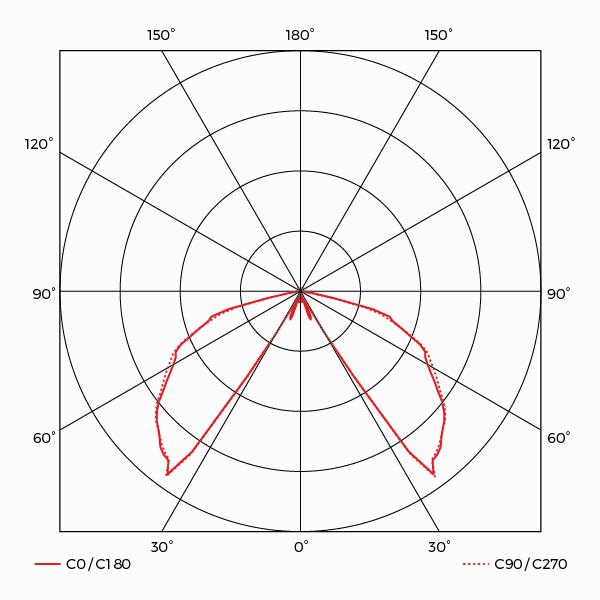

Carmona Photometry (Clear)

DIMENSIONS

Bollard Dimensions

CODE BUILDER

Replace NC with NO: Opal diffuser

Click here to download our full
technical data sheet

DESCRIPTION CODE LUMENS (Lm) EFFICACY (Lm/w) IP RATING WEIGHT (Kg)
Carmona Black Mild Steel Bollard Clear Diffuser 14W 4000K

BCR94NC14T740

960 66 IP65 12
Carmona Black Mild Steel Bollard Opal Diffuser 14W 4000K

BCR94NO14T740

960 66 IP65 12
CARMONA 14W Mild Steel Bollard Flange Mount Clear Diffuser

BCR94FNC14T740

960 66 IP65 12
CARMONA 14W Mild Steel Bollard Flange Mount Opal Diffuser

BCR94FNO14T740

960 66 IP65 12



DESCRIPTION Carmona Black Mild Steel Bollard Clear Diffuser 14W 4000K
CODE BCR94NC14T6LED40
LUMENS 960
EFFICACY (LM/W) 66
IP RATING IP65
WEIGHT (KG) 12
