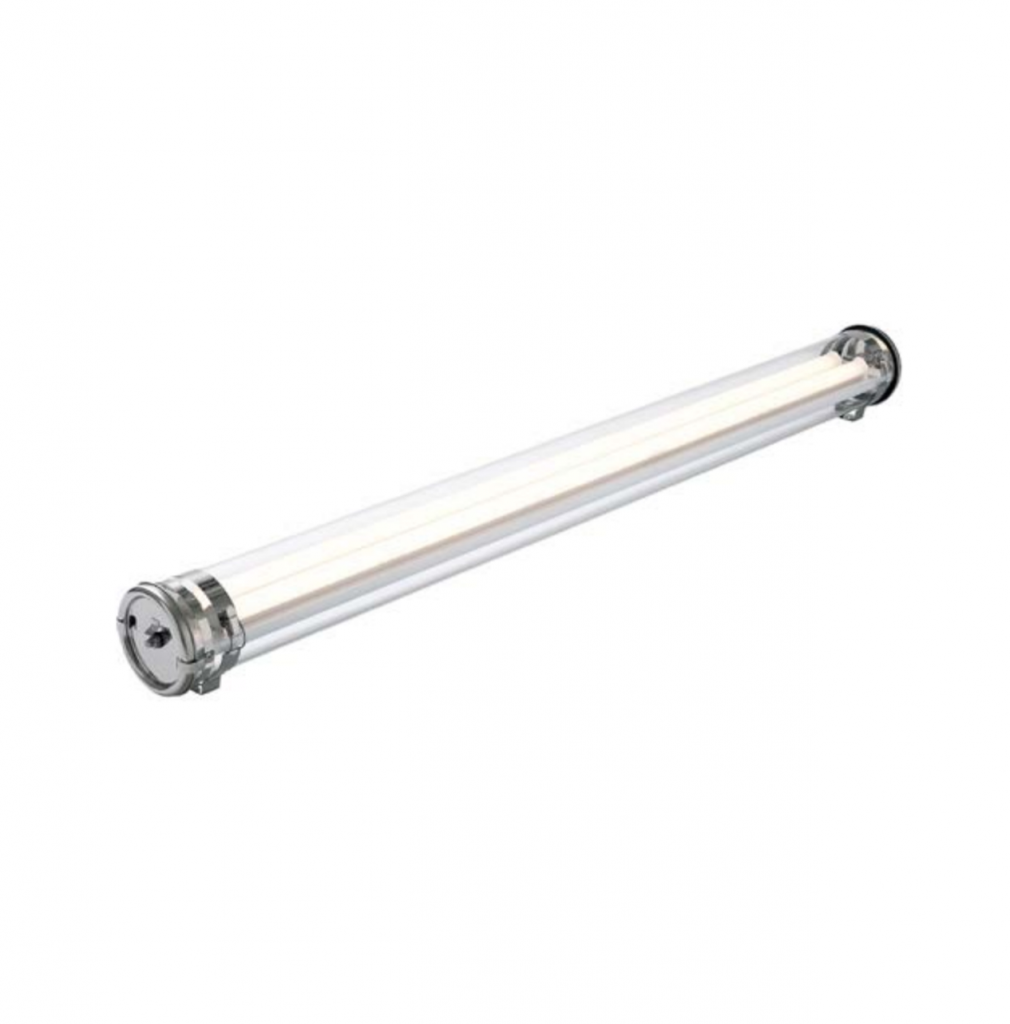

LED tube light with a high-resistance glass shade, designed for particularly corrosive or abrasive industrial atmospheres up to 70°C.
One piece impervious housing with screw system. Durable and easy to maintain luminaire constructed with borosilicate glass housing with stainless steel end caps and fixings.
Features
- IK07
- IP68
- 5 Year Warranty
- 1850 to 9250 lumens
- 70,000 hours L80B10
- -20°C to +70°C Operating Temperature
- Plug and play installation
Contact the team to discuss the best solution for you.
TECHNICAL
Specifications

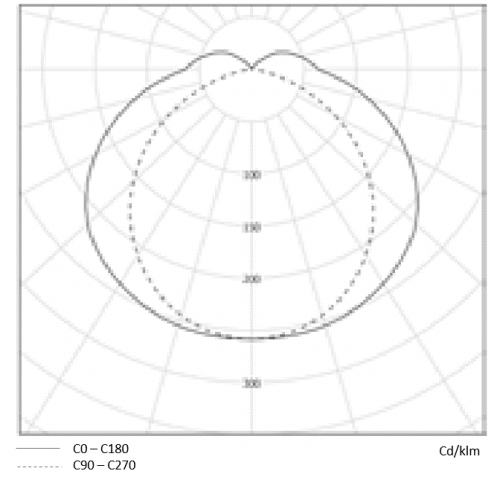

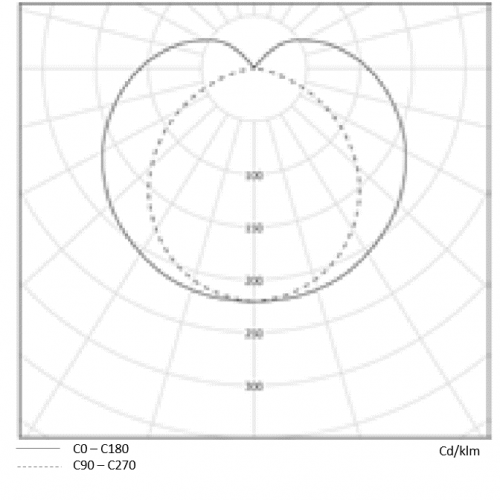

DIMENSIONS & PHOTOMETRY
100mm Diameter
133mm Diameter
Click here to download our full technical data sheet
PRODUCT CODES
Ø100mm Diameter
| DESCRIPTION | CODE | SYSTEM POWER (W) | LUMENS (Lm) | EFFICACY (Lm/cW) |
| Leslie, 1800, 697mm, 4000k | 3107 0020 | 17 |
1850 |
108.8 |
| Leslie, 2700, 1007mm, 4000k | 3107 0040 | 25 |
2775 |
111 |
| Leslie, 4600, 1607mm, 4000k | 3107 0060 | 43 | 4625 | 107.6 |
| DESCRIPTION | Leslie, 1800, 697mm, 4000k |
|---|---|
| CODE | 3107 0020 |
| SYSTEM POWER (W) | 17 |
| LUMENS |
1850 |
| EFFICACY (Lm/cW) | 108.8 |
| DESCRIPTION | Leslie, 2700, 1007mm, 4000k |
|---|---|
| CODE | 3107 0040 |
| SYSTEM POWER (W) | 25 |
| LUMENS | 2775 |
| EFFICACY (Lm/cW) | 111 |
| DESCRIPTION | Leslie, 4600, 1607mm, 4000k |
|---|---|
| CODE | 3107 0060 |
| SYSTEM POWER (W) | 43 |
| LUMENS | 4625 |
| EFFICACY (Lm/cW) | 107.6 |
Ø133mm Diameter
| DESCRIPTION | CODE | SYSTEM POWER (W) | LUMENS (Lm) | EFFICACY (Lm/cW) |
| Leslie, 5500, 987mm 4000k | 3207 0020 | 50 |
5550 |
111 |
| Leslie, 9250, 1595mm, 4000k | 3207 0040 | 80 |
9250 |
115.6 |
| DESCRIPTION | Leslie, 5500, 987mm 4000k |
|---|---|
| CODE | 3207 0020 |
| SYSTEM POWER (W) | 50 |
| LUMENS |
5550 |
| EFFICACY (Lm/cW) | 111 |
| DESCRIPTION | Leslie, 9250, 1595mm, 4000k |
|---|---|
| CODE | 3207 0040 |
| SYSTEM POWER (W) | 80 |
| LUMENS | 9250 |
| EFFICACY (Lm/cW) | 115.6 |
