ALUMAX MAX

Home - Products - Industrial Lighting - ALUMAX MAX

Alumax Max

Robust Aluminium Linear

Hazardous Lighting Icon5 Year Warranty

Aluminium linear luminaire, designed for extreme temperatures and harsh environments.

Key features:

  • IP66
  • IK10
  • Lumen Output Range: 3050 to 8100 Lumens
  • Operating Temperature: -40 °C to +75 °C
  • Excellent efficacy up to 129Lm/Cw

Contact the team to discuss the best solution for you.

TECHNICAL

Specifications

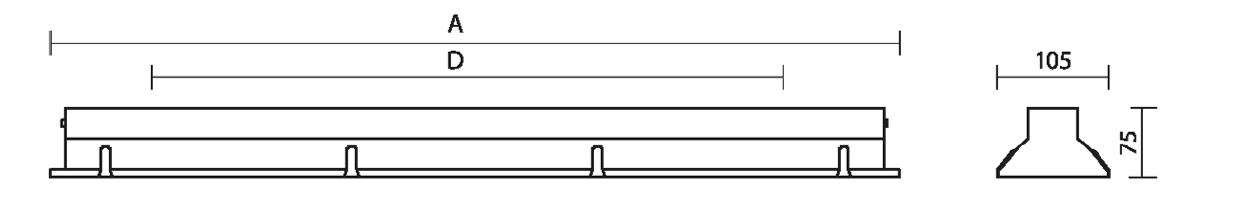

DIMENSIONS & PHOTOMETRY

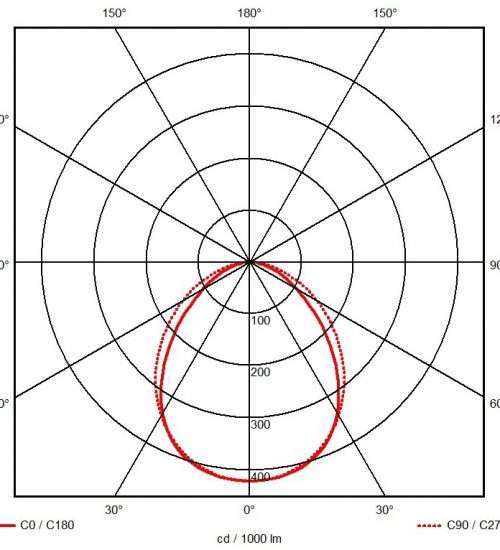

alumax photometry

 Click here to download our full technical data sheet

PRODUCT CODE

CODE Description Light Output (Lm) System Power(W) Efficacy (Lm/cW)
ALM305154K Alumax, 3000, 1500mm, Max. temp +75°C 3050 24 127
ALM410154K Alumax, 4100, 1500mm, Max. temp +70°C 4100 33 124
ALM49212K Alumax, 4900, 1200mm, Max. temp +70°C 4920 38 129
ALM64812K Alumax, 6500, 1200mm, Max. temp +65°C 6480 52 125
ALM602154K Alumax, 6000, 1500mm, Max. temp +70°C 6020 48 125
ALM810154K Alumax, 8100, 1500mm, Max. temp +65°C 8100 65 125
Code ALM305154K
Description Alumax, 3000, 1500mm, Max. temp +75°C
Light Output (Lm) 3050
System Power(W) 24
Efficacy (Lm/cW) 127
Code ALM410154K
Description Alumax, 4100, 1500mm, Max. temp +70°C
Light Output (Lm) 4100
System Power(W) 33
Efficacy (Lm/cW) 124
Code ALM49212K
Description Alumax, 4900, 1200mm, Max. temp +70°C
Light Output (Lm) 4920
System Power(W) 38
Efficacy (Lm/cW) 129
Code ALM64812K
Description Alumax, 6500, 1200mm, Max. temp +65°C

Lumen Output (Lm)

6480
Power Consumption (W) 52
Efficacy (Lm/cW) 125
Code ALM602154K
Description Alumax, 6000, 1500mm, Max. temp +70°C
Light Output (Lm) 6020
System Power(W) 48
Efficacy (Lm/cW) 125
Code ALM810154K
Description Alumax, 8100, 1500mm, Max. temp +65°C

Lumen Output (Lm)

8100
System Power(W) 65
Efficacy (Lm/cW) 125
