High efficiency LED luminaire suitable for zone 1 hazardous area applications in both standard and emergency formats and a range of sizes from 2-5ft with light output up to 5,265 Lumens.
Manufactured from heavy duty aluminium extrusion with polycarbonate end caps and diffuser. The three hour duration emergency models are fitted with integral batteries and charger units. Access to gear tray is via a single point locking mechanism and mounting is enabled using “quick fit” T bolts in a channel for maximum flexibility. The modern styling of this extremely rigid and robust luminaire allows unobtrusive use for both internal and external applications.
- Low maintenance high efficiency LED light source
- Standard and emergency variants
- Class leading light output
- Variable mounting centres
- 2’ 4’ and 5’ versions
- Captive diffuser with isolation switch for safe installation and maintenance
- Anodised corrosion resistant aluminium body with high impact polycarbonate diffuser
TECHNICAL
Specifications

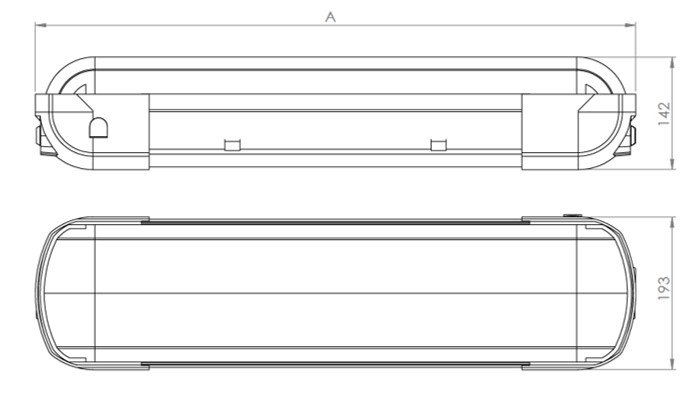

DIMENSIONS
| Size | A / mm | B / mm |
| 2 | 760 | 450 |
| 4 | 1365 | 1055 |
| 5 | 1665 | 1355 |
Click here to download our full technical datasheet.
Click to see ordering information
| CODE | Description | Light Output (Lm) | Power Consumption (W) | Size (mm) |
| S921604K | LED 2100 Linear Luminaire | 2,106 | 30 | 760 |
| S942124K | LED 4200 Linear Luminaire | 4,212 | 60 | 1,365 |
| S952154K | LED 5200 Linear Luminaire | 5,265 | 75 | 1,665 |
| S921694KEM | LED 2100 Emergency Luminaire | 2,106 | 30 | 760 |
| S942124KEM | LED 4200 Emergency Luminaire | 4,212 | 60 | 1,365 |
| S952154KEM | LED 5200 Emergency Luminaire | 5,265 | 75 | 1,665 |
| Code | S921604K |
|---|---|
| Description | LED 2100 Linear Luminaire |
| Light Output (Lm) | 2,106 |
| Power Consumption (W) | 30 |
| Size (mm) | 760 |
| Code | S942124K |
|---|---|
| Description | LED 4200 Linear Luminaire |
| Light Output (Lm) | 4,212 |
| Power Consumption (W) | 60 |
| Size (mm) | 1,365 |
| Code | S952154K |
|---|---|
| Description | LED 5200 Linear Luminaire |
| Light Output (Lm) | 5,265 |
| Power Consumption (W) | 75 |
| Size (mm) | 1,665 |
| Code | S921694KEM |
|---|---|
| Description | LED 2100 Emergency Luminaire |
|
Lumen Output (Lm) |
2,106 |
| Power Consumption (W) | 30 |
| Size (mm) | 760 |
| Code | S942124KEM |
|---|---|
| Description | LED 4200 Emergency Luminaire |
| Light Output (Lm) | 4,212 |
| Power Consumption (W) | 60 |
| Size (mm) | 1,365 |
| Code | S952154KEM |
|---|---|
| Description | LED 5200 Emergency Luminaire |
|
Lumen Output (Lm) |
5,265 |
| Power Consumption (W) | 75 |
| Size (mm) | 1,665 |
