HACHERO 3
Surface Mounted, Anti-ligature, Bulkhead
A range of surface mounted decorative anti-ligature luminaires. Constructed from a spun aluminium circular base, with opal polycarbonate diffuser. Suitable for use in corridors, reception areas, hospitals, schools, bedrooms and other internal areas.
• IP20
• Integral, self-test and central battery emergency versions available
• Microwave presence detection options available
• Night light facility option
• Lifetime 50,000 hours
TECHNICAL
Specifications
PHOTOMETRIC

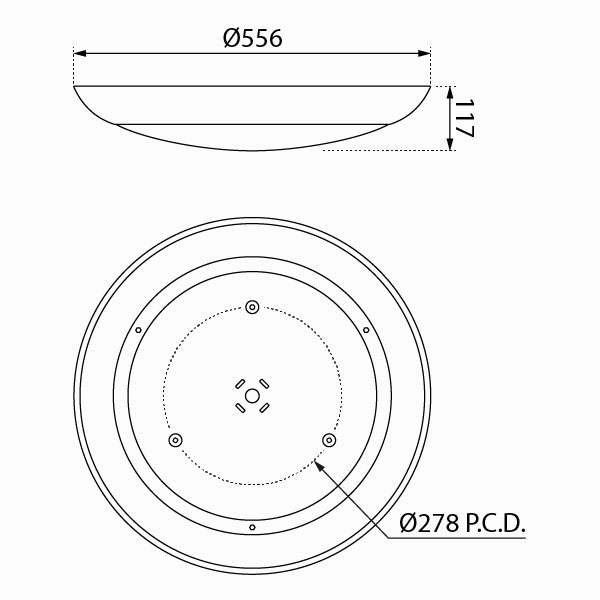

DIMENSIONS
CODE BUILDER
Emergency – Add EM
Microwave – Add MS9
Microwave corridor version – Add MS9MD
Colour 3000K – Replace 40 with 30
Dali dimming – Add DA
Self-test emergency – Add STEM
Night light – ADD NL
Click here to download our full
technical data sheet
| DESCRIPTION | CODE | LUMENS (Lm) | EFFICACY (Lm/w) | IP RATING | WEIGHT (Kg) |
| HACHERO 3 LED Anti Ligature Bulkhead, 13W, 4000K | S3H134T440 | 1205 | 86 | IP20 | 4.2 |
| HACHERO 3 LED Anti Ligature Bulkhead, 16W, 4000K | S3H164T440 | 1678 | 93 | IP20 | 4.2 |
| HACHERO 3 LED Anti Ligature Bulkhead, 25W, 4000K | S3H254T440 | 2389 | 85 | IP20 | 4.2 |
| DESCRIPTION | HACHERO 3 LED Anti Ligature Bulkhead, 13W, 4000K |
|---|---|
| CODE | S3H134T440 |
| LUMENS | 1205 |
| EFFICACY (LM/W) | 86 |
| IP RATING | IP20 |
| WEIGHT (KG) | 4.2 |
| DESCRIPTION | HACHERO 3 LED Anti Ligature Bulkhead, 16W, 4000K |
| CODE | S3H164T440 |
| LUMENS | 1678 |
| EFFICACY (LM/W) | 93 |
| IP RATING | IP20 |
| WEIGHT (KG) | 4.2 |
| DESCRIPTION | HACHERO 3 LED Anti Ligature Bulkhead, 25W, 4000K |
| CODE | S3H254T440 |
| LUMENS | 2389 |
| EFFICACY (LM/W) | 85 |
| IP RATING | IP20 |
| WEIGHT (KG) | 4.2 |
