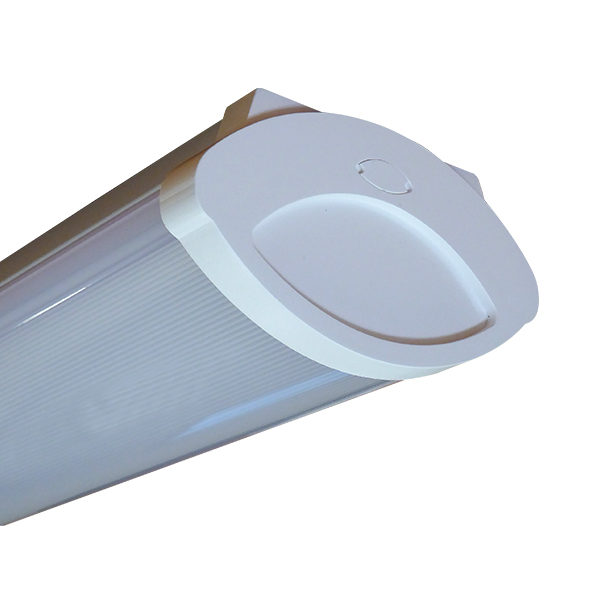

CATALUNA
Linear
An IP20 luminaire with dry powder coated steel base, opal polycarbonate internal ridged extruded diffuser and polycarbonate end caps, secured by tamperproof screws with surface and suspension mounting capabilities. Digital dimming and integral emergency versions available.
• Attractive low profile design
• Simple installation
• Ceiling or suspension mounting
• End caps secured by tamperproof screws
• Full depth profile colour matched end caps
• Dimmable and emergency versions available
• Lifetime 50,000 hours
• Opal diffuser
TECHNICAL
Specifications
PHOTOMETRIC

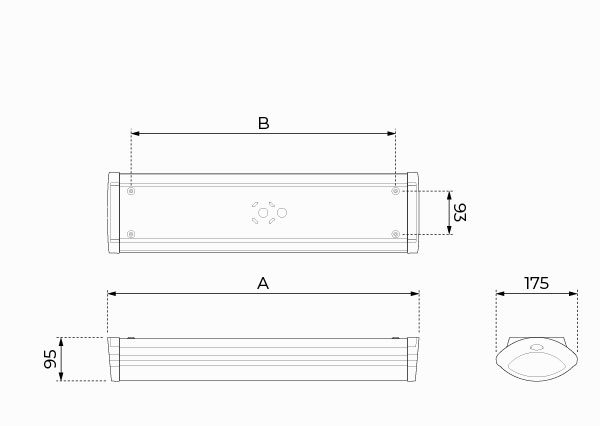

DIMENSIONS
Click here to download our full
technical data sheet
| A (mm) |
B (mm) |
|
| 18W, 30W, 40W & 53W | 1201 | 980 |
| 23W, 33W, 45W & 66W | 1501 | 1280 |
| 18W, 30W, 40W & 53W | |
| A (mm) |
1201 |
| B (mm) |
980 |
| 23W, 33W, 45W & 66W | |
| A (mm) |
1501 |
| B (mm) |
1280 |
| DESCRIPTION | CODE | LUMENS (Lm) | EFFICACY (Lm/W) | IP RATING | WEIGHT (Kg) |
| CATALUNA LED, 18W, 4ft, 4000K, Opal Prismatic Diffuser | SFC184T5LED40 | 2675 | 116 | IP20 | 4.5 |
| CATALUNA LED, 30W 4ft, 4000K, Opal Prismatic Diffuser | SFC304T4LED40 | 4456 | 122 | IP20 | 4.5 |
| CATALUNA LED, 41W 4ft, 4000K, Opal Prismatic Diffuser | SFC414T4LED40 | 6273 | 126 | IP20 | 4.5 |
| CATALUNA LED, 54W 4ft, 4000K Opal Prismatic Diffuser | SFC544T4LED40 | 8278 | 126 | IP20 | 4.6 |
| CATALUNA LED, 23W, 5ft, 4000K, Opal Prismatic Diffuser | SFC235T4LED40 | 3345 | 122 | IP20 | 4.5 |
| CATALUNA LED, 34W, 5ft, 4000K, Opal Prismatic Diffuser | SFC345T4LED40 | 5173 | 125 | IP20 | 6.5 |
| CATALUNA LED, 46W 5ft, 4000K, Opal Prismatic Diffuser | SFC455T5LED40OP | 6690 | 119 | IP20 | 6.6 |
| CATALUNA LED, 68W, 5ft, 4000K, Opal Prismatic Diffuser | SFC665T5LED40OP | 10347 | 125 | IP20 | 6.6 |
| DESCRIPTION | CATALUNA LED, 18W, 4ft, 4000K, Opal Prismatic Diffuser |
|---|---|
| CODE | SFC184T5LED40 |
| LUMENS | 2675 |
| EFFICACY (LM/W) | 116 |
| IP RATING | IP20 |
| WEIGHT (KG) | 4.5 |
| DESCRIPTION | CATALUNA LED, 30W 4ft, 4000K, Opal Prismatic Diffuser |
| CODE | SFC304T4LED40 |
| LUMENS | 4456 |
| EFFICACY (LM/W) | 122 |
| IP RATING | IP20 |
| WEIGHT (KG) | 4.5 |
| DESCRIPTION | CATALUNA LED, 40W 4ft, 4000K, Opal Prismatic Diffuser |
| CODE | SFC414T4LED40 |
| LUMENS | 6273 |
| EFFICACY (LM/W) | 126 |
| IP RATING | IP20 |
| WEIGHT (KG) | 4.5 |
| DESCRIPTION | CATALUNA LED, 23W, 5ft, 4000K, Opal Prismatic Diffuser |
| CODE | SFC235T4LED40 |
| LUMENS | 3345 |
| EFFICACY (LM/W) | 122 |
| IP RATING | IP20 |
| WEIGHT (KG) | 4.5 |
| DESCRIPTION | CATALUNA LED, 33W, 5ft, 4000K, Opal Prismatic Diffuser |
| CODE | SFC345T4LED40 |
| LUMENS | 5173 |
| EFFICACY (LM/W) | 125 |
| IP RATING | IP20 |
| WEIGHT (KG) | 6.5 |
| DESCRIPTION | CATALUNA LED, 45W 5ft, 4000K, Opal Prismatic Diffuser |
| CODE | SFC465T4LED40 |
| LUMENS | 6690 |
| EFFICACY (LM/W) | 119 |
| IP RATING | IP20 |
| WEIGHT (KG) | 6.5 |
| DESCRIPTION | CATALUNA LED, 66W, 5ft, 4000K, Opal Prismatic Diffuser |
| CODE | SFC685T4LED40 |
| LUMENS | 10347 |
| EFFICACY (LM/W) | 125 |
| IP RATING | IP20 |
| WEIGHT (KG) | 6.5 |
| DESCRIPTION | CATALUNA LED, 53W 4ft, 4000K, Opal Prismatic Diffuser |
| CODE | SFC544T4LED40 |
| LUMENS | 8278 |
| EFFICACY (LM/W) | 126 |
| IP RATING | IP20 |
| WEIGHT (KG) | 4.6 |
CODE BUILDER
EM: Emergency
MS9: Microwave
DA: Dali/switch dimming
STEM: Self-test emergency
Colour temperature options available
