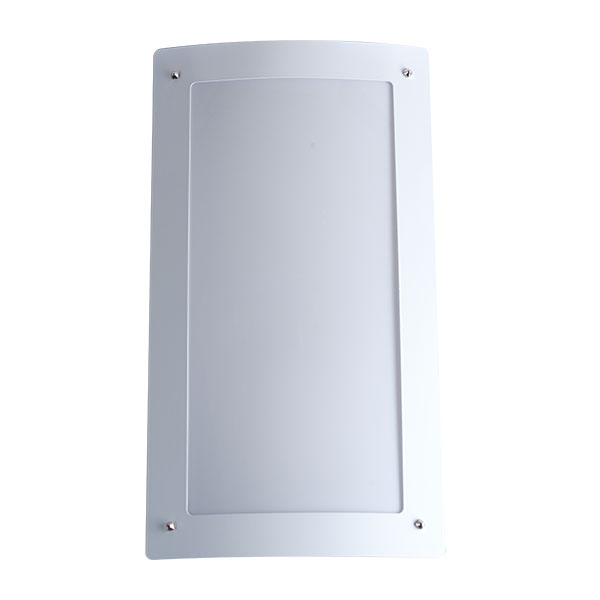

LINDOSO
Surface Mounted, Wall Light (Decorative)
A distinctive and attractive slimline luminaire with slotted side panels which give a subtle horizontal backlight. Fabricated from white dry powder coated mild steel base/diffuser frame and opal polycarbonate diffuser secured by decorative chrome bolts. Suitable for hotels, offices, corridors and stairwells.
• White dry powder coated mild steel base/diffuser frame
• Opal polycarbonate diffuser
• Secured by decorative chrome bolts
• Slotted side panels in the base give a back light to the side of the luminaire
• Lifetime 50,000 hours
TECHNICAL
Specifications

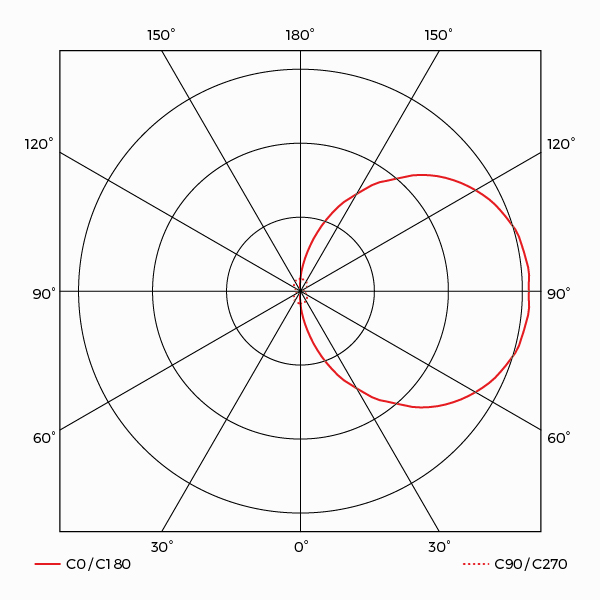

PHOTOMETRIC

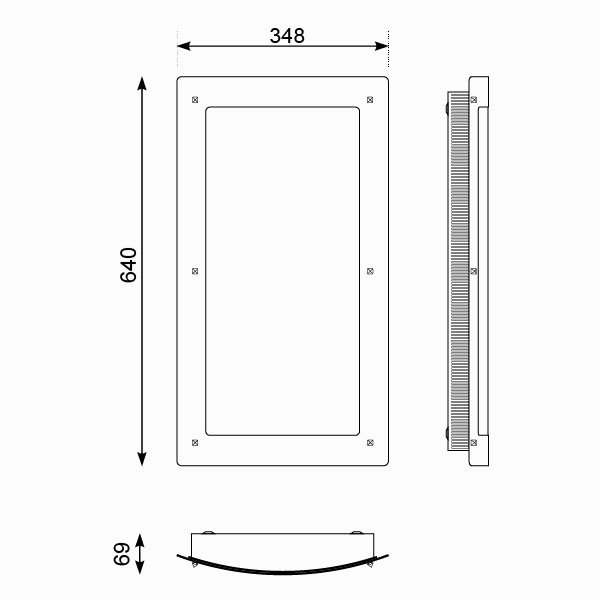

DIMENSIONS
CODE BUILDER
EM: Emergency
MS9: Microwave
MS9MD: Microwave corridor version
30: Colour 3000K
DA: Dali dimming
Click here to download our full
technical data sheet
| DESCRIPTION | CODE | LUMENS (Lm) | EFFICACY (Lm/w) | POWER SUPPLY (W) |
| Lindoso Architectural Surface Mounted Wall Light 24W 2800, 4000k, back light effect | SDL24T5LED40 | 2814 | 117 | 24 |
| Lindoso Architectural Surface Mounted Wall Light 24W 5000, 4000k, back light effect | SDL44T5LED40 | 5000 | 113 | 44 |
| DESCRIPTION | Lindoso Architectural Surface Mounted Wall Light 24W 2800, 4000k, back light effect |
|---|---|
| CODE | SDL24T5LED40 |
| LUMENS | 2814 |
| EFFICACY (LM/W) | 117 |
| POWER SUPPLY (W) | 24 |
| DESCRIPTION | Lindoso Architectural Surface Mounted Wall Light 24W 5000, 4000k, back light effect |
|---|---|
| CODE | SDL24T4LED40 |
| LUMENS | 5000 |
| EFFICACY (LM/W) | 113 |
| POWER SUPPLY (W) | 44 |
