Sammode Sabatier

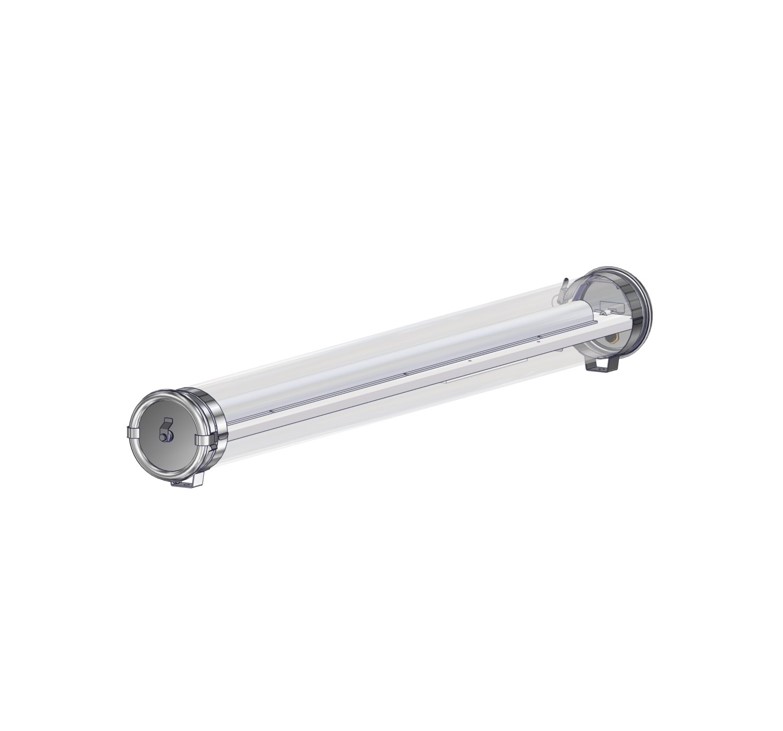

LED tube light designed for general lighting for the most extreme ATEX / IECEx atmospheres, in Zone 1 (Gas)

Conforms to ATEX / IECEx IEC 60079-0, IEC 60079-7, IEC 60079-18, IEC 60079-31 standards. Top impermeability and durability as per IP68-IP69K. Materials offer high chemical and mechanical resistance. Very highly reliable electronics with a very long service life.

One-piece housing that is impact-resistant and impervious to vibrations (SCREW system). External metal parts in 304L stainless steel (316L as an option) and borosilicate glass shade (IK07) offering complete resistance to abrasion and chemical erosion.

Also available with a composite shade that is highly resistant to shocks (IK10), hydrocarbons and outdoor UV radiation.

Significant energy and maintenance savings, with a useful lumen rating equivalent to or greater than fluorescent solutions. 5-YEAR WARRANTY, in intensive use in the harshest of conditions.

Built to last, scalable and entirely repairable, it is the standout ATEX tube light for ambient lighting in the extreme atmospheres of Zone 1 sites.

Features

• IK07
• IP68-IP69K
• 5 Year Warranty

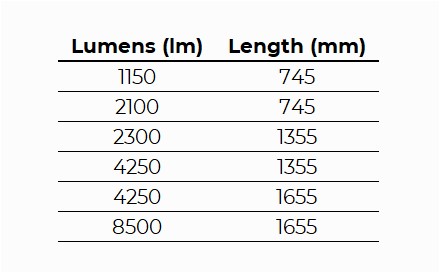

• 1150 to 8500 lumens
• 50,000 hours L80B50
• -20 to +40 Operating Temperature
• Single or double glanded Entry Options

Contact the team to discuss the best solution for you.
