CABRITO

This luminaire is suitable for use in garage forecourts, car parks and loading bay areas.

• Canopy fittings are inclusive of the diffuser, diffuser option selected must be specified
• Lifetime 50,000 hours

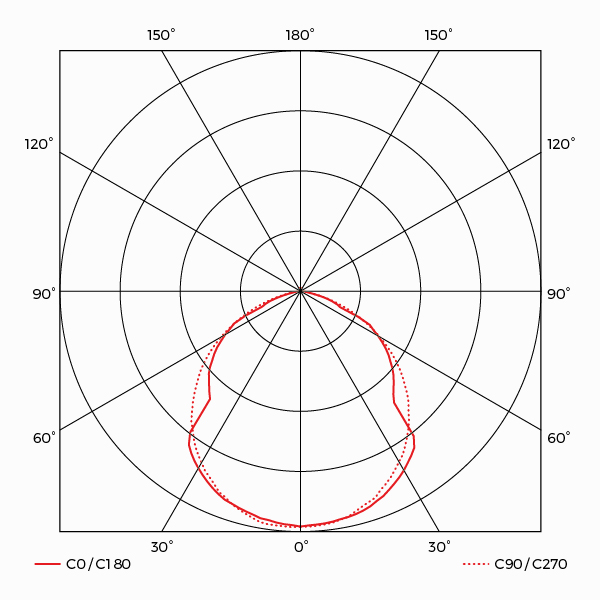

PHOTOMETRIC

DIMENSIONS

CODE BUILDER

DA: Dali/switch dimming
EM: Emergency
STEM: Self-test emergency
GF: Opal diffuser
CP: Polycarbonate diffuser
30: Colour 3000K

Click here to download our full
technical data sheet

DESCRIPTION	CODE	LUMENS (Lm)	EFFICACY (Lm/w)	IP RATING	WEIGHT (Kg)
Cabrito Minor Recessed Front Access Canopy 54W	C3R54T4340FCP 4000K	7516	131	Front IP65 Rear IP54	8
Cabrito Major Recessed Front Access Canopy 167W	C6R167HF340FCP 4000K	22680	129	Front IP65 Rear IP54	18
Cabrito Major Recessed Rear Access Canopy 167W	C6R167HF340RCP 4000K	22680	129	Front IP65 Rear IP54	21

*Tridonic LED and Tridonic driver apply to C3R54T4340FCP only. Philips LED and Philips driver apply to C6R167HF340FCP and C6R167HF340RCP.

DESCRIPTION	Cabrito Minor Recessed Front Access Canopy 54W
CODE	C3R54T4340FCP 4000K
LUMENS	7516
EFFICACY (LM/W)	131
IP RATING	Front IP65 Rear IP54
WEIGHT (KG)	8

DESCRIPTION	Cabrito Major Recessed Front Access Canopy 167W
CODE	C6R167HF340FCP 4000K
LUMENS	22680
EFFICACY (LM/W)	129
IP RATING	Front IP65 Rear IP54
WEIGHT (KG)	18

DESCRIPTION	Cabrito Major Recessed Rear Access Canopy 167W
CODE	C6R167HF340RCP 4000K
LUMENS	22680
EFFICACY (LM/W)	129
IP RATING	Front IP65 Rear IP54
WEIGHT (KG)	21
