ELMIRA
Surface Mounted, Bulkhead
A range of compact, economic, IP65 amenity wall lights with low glare and excellent spacing ratios. Ideal for the illumination of footpaths and walkways around public, commercial and industrial premises.
• IP65
• Black visor to reduce light pollution
• Photocell control available
• Lifetime 50,000 hours
TECHNICAL
Specifications

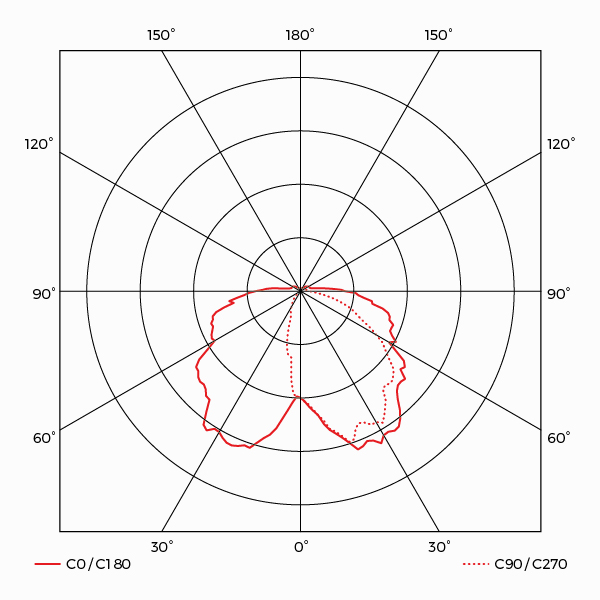

PHOTOMETRIC

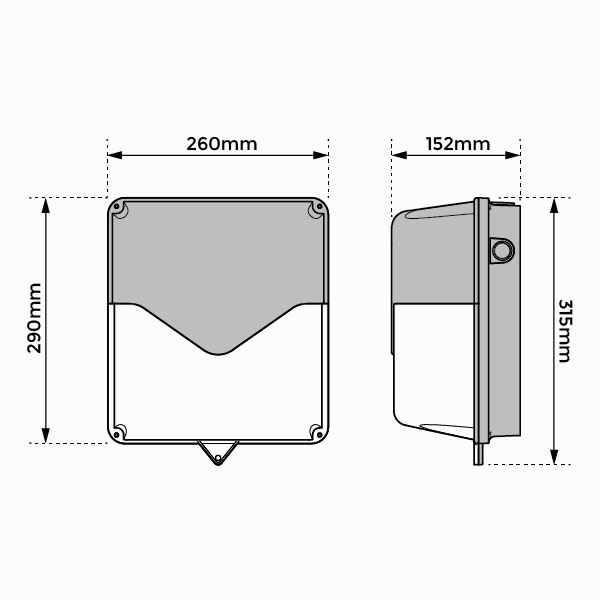

DIMENSIONS
CODE BUILDER
EM: Emergency
STEM: Self-test emergency
P: Photocell
Click here to download our full
technical data sheet
| DESCRIPTION | CODE | LUMENS (Lm) | EFFICACY (Lm/w) | IP RATING | WEIGHT (Kg) |
| Elmira Bulkhead 4000K 12W | WLE12T440 | 1062 | 75 | IP65 | 2.1 |
| Elmira Bulkhead 4000K 24W | WLE21T440 | 1822 | 75 | IP65 | 2.1 |
| DESCRIPTION | Elmira Bulkhead 4000K 12W |
|---|---|
| CODE | WLE12T440 |
| LUMENS | 1062 |
| EFFICACY (LM/W) | 75 |
| IP RATING | IP65 |
| WEIGHT (KG) | 2.1 |
| DESCRIPTION | Rico 4ft Batten 4000K 24W |
|---|---|
| CODE | WLE21T440 |
| LUMENS | 1822 |
| EFFICACY (LM/W) | 75 |
| IP RATING | IP65 |
| WEIGHT (KG) | 2.1 |
