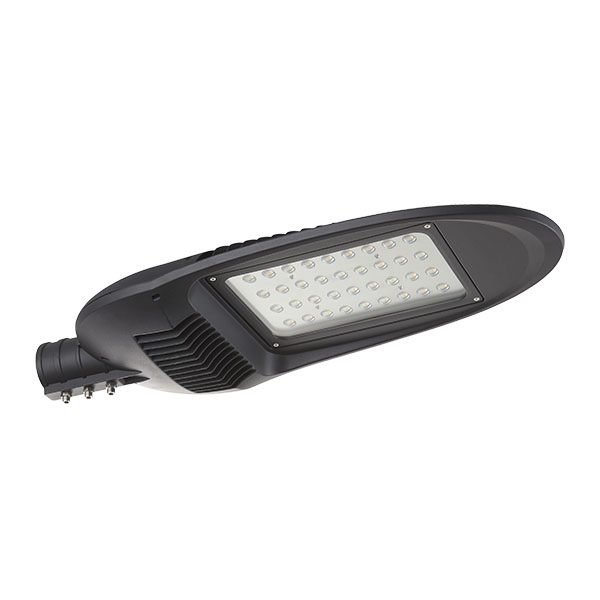

DELFINA
Street Light, Minor Roads
Constructed from an aluminium body and gear cover with a black powder coated finish, the luminaires are strong and lightweight and very stable in operation. Suitable for use in car parks, many access roads and local and urban street lighting situations.
• IP65, 230 volts 50Hz – nominal supply
• Easy installation and low maintenance
• Low profile appearance
• Robust aluminium casing with powder coated finish
• High luminaire efficacy up to 104 llm/W
• Stainless steel securing bolts
• Lifetime 30,000 hours
TECHNICAL
Specifications
PHOTOMETRIC
DIMENSIONS
| DESCRIPTION | CODE | LUMENS (Lm) | EFFICACY (Lm/w) | IP RATING | WEIGHT (Kg) |
| Delfina Street Light 4000K 30W | RL2D30LED40 | 2755 | 91 | IP65 | 2.68 |
| Delfina Street Light 4000K 50W | RL2D50LED40 | 4580 | 92 | IP65 | 2.68 |
| Delfina Street Light 4000K 80W | RL2D80LED40 | 8083 | 101 | IP65 | 5.8 |
| Delfina Street Light 4000K 100W | RL2D100LED40 | 10455 | 104 | IP65 | 5.8 |
| DESCRIPTION | Delfina Street Light 4000K 30W |
|---|---|
| CODE | RL1D30LED40 |
| LUMENS | 2755 |
| EFFICACY (LM/W) | 91 |
| IP RATING | IP65 |
| WEIGHT (KG) | 2.68 |
| DESCRIPTION | Delfina Street Light 4000K 50W |
|---|---|
| CODE | RL1D50LED40 |
| LUMENS | 4580 |
| EFFICACY (LM/W) | 92 |
| IP RATING | IP65 |
| WEIGHT (KG) | 2.68 |
| DESCRIPTION | Delfina Street Light 4000K 80W |
|---|---|
| CODE | RL2D80LED40 |
| LUMENS | 8083 |
| EFFICACY (LM/W) | 101 |
| IP RATING | IP65 |
| WEIGHT (KG) | 5.8 |
| DESCRIPTION | Delfina Street Light 4000K 100W |
| CODE | RL2D100LED40 |
| LUMENS | 10455 |
| EFFICACY (LM/W) | 104 |
| IP RATING | IP65 |
| WEIGHT (KG) | 5.8 |
