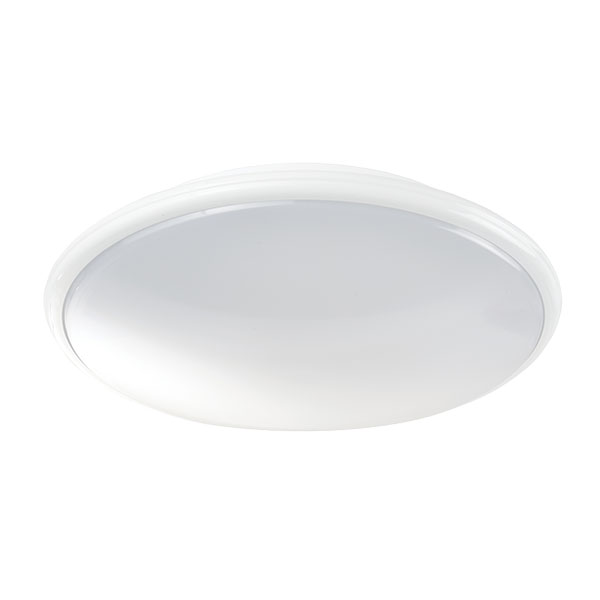

HACHERO 1 GEN 2
Surface Mounted Bulkhead
A range of surface mounted decorative luminaires, suitable for use in corridors, reception areas, hospitals, schools and other internal areas.
• IP20
• Integral, self-test and central battery emergency versions available
• Semi-recessing kit available
• Microwave presence detection options available
• Nightlight facility option
• Lifetime 50,000 hours
TECHNICAL
Specifications

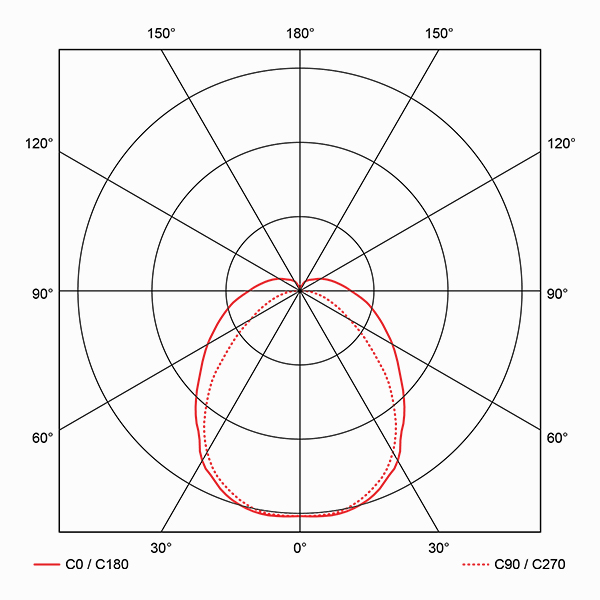

PHOTOMETRIC
DIMENSIONS
CODE BUILDER
EM: Emergency
MS9: Microwave
MS9MD: Microwave corridor version
30: Colour 3000K
DA: Dali dimming
STEM: Self-test emergency
NL: Nightlight
Semi-recessing kit available
Click here to download our full
technical data sheet
PRODUCT CODES
| DESCRIPTION | CODE | SYSTEM POWER (W) | LUMENS (Lm) | EFFICACY (Lm/cW) |
| HACHERO 1 Gen 2, Slimline LED Bulkhead, 1200, 4000k | S1H2114T440 | 11.2 | 1210 | 108 |
| HACHERO 1 Gen 2, Slimline LED Bulkhead, 1900, 4000k | S1H2164T440 | 16.2 | 1937 | 119.6 |
| HACHERO 1 Gen 2, Slimline LED Bulkhead, 2700, 4000k | S1H2224T440 | 21.8 | 2797 | 128.3 |
| HACHERO 1 Gen 2, Slimline LED Bulkhead, 3800, 4000k |
S1H2304T440 |
29.7 | 3874 | 130.4 |
| DESCRIPTION | HACHERO 1 Gen 2, Slimline LED Bulkhead, 1200, 4000k |
|---|---|
| CODE | S1H094T340 |
| SYSTEM POWER (W) | 11.2 |
| LUMENS | 1210 |
| EFFICACY (Lm/cW) | 108 |
| DESCRIPTION | HACHERO 1 Gen 2, Slimline LED Bulkhead, 1900, 4000k |
| CODE | S1H094T340 |
| SYSTEM POWER (W) | 16.2 |
| LUMENS | 1937 |
| EFFICACY (Lm/cW) | 119.6 |
| DESCRIPTION | HACHERO 1 Gen 2, Slimline LED Bulkhead, 2700, 4000k |
| CODE | S1H094T340 |
| SYSTEM POWER (W) | 21.8 |
| LUMENS | 2797 |
| EFFICACY (Lm/cW) | 128.3 |
| DESCRIPTION | HACHERO 1 Gen 2, Slimline LED Bulkhead, 3800, 4000k |
| CODE | S1H174T340 |
| SYSTEM POWER (W) | 29.7 |
| LUMENS | 3874 |
| EFFICACY (Lm/cW) | 130.4 |
| DESCRIPTION | Hachero 1 Semi Recessing Kit (Bracket + Screws) |
ACCESSORIES
| DESCRIPTION | CODE |
| Hachero 1 Semi Recessing Kit (Bracket + Screws) | S1HSRK |
| DESCRIPTION | Hachero 1 Semi Recessing Kit (Bracket + Screws) |
|---|---|
| CODE | S1HSRK |
